Rinnai DINLR07B1A-SET 7.3kW Ducted 1 Phase Air Conditioning System
DINLR07B1A / DONSR07B1LA Rinnai Ducted System
$2,637.27 Excl GST

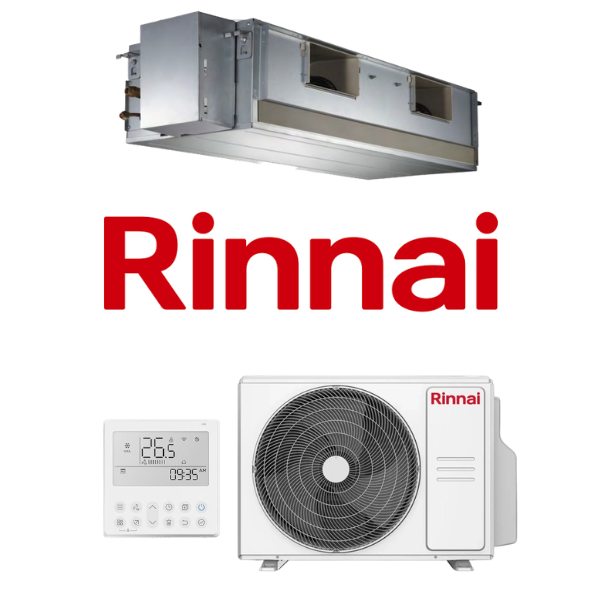

Rinnai DINLR07B1A-SET 7.3kW Ducted Single Phase System - Includes Wall Controller and Outdoor Unit DONSR07B1LA
Efficient ducted heating and cooling for every season. Designed for reliable year-round comfort, this 7.0kW ducted air conditioning system combines energy-efficient inverter performance, customised zoning, intelligent controls, and low-noise operation throughout the home.
Key Features:
- Flexible 8 Zone Climate Control - Enjoy personalised comfort with independent control of up to eight zones, allowing you to switch each zone on or off and adjust temperatures directly from the main controller.
- Self-Cleaning Air Purity - Deep cleaning technology with 56°C sterilisation helps remove bacteria and reduce dust build-up.
- Long-Lasting Protection - Advanced Gold Guard technology helps safeguard the condenser coil from corrosion.
- Eco-Friendly R32 Refrigerant
- Wi-Fi Control and Remote Schedules
- Humidity Control - Manage room humidity with Dry Mode for balanced comfort
- Quiet Operation
(DINLR07B1A-SET)
| System | DINLR07B1A-SET | DINLR09B1A-SET | DINLR11B1A-SET | DINLR13B1A-SET | DINLR15B1SA-SET |
|---|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 7.3 | 9.0 | 10.5 | 12.6 | 14.0 |
| Rated Heating Capacity (kW) | 7.5 | 10.5 | 12.5 | 14.5 | 16.8 |
| Rated Input Power Cool/Heat (W) | 2139 / 1842 | 2610 / 2400 | 3145 / 2980 | 3765 / 3550 | 4180 / 4300 |
| Rated Input Current Cool/Heat (A) | 9.3 / 8.2 | 11.9 / 10.6 | 14.1 / 13.5 | 16.6 / 15.4 | 18.4 / 18.9 |
| Power Supply (V / Ph / Hz) | 220-240 / 1 / 50 | ||||
| AEER / ACOP | 3.39 / 4.04 | 3.40 / 4.30 | 3.30 / 4.14 | 3.32 / 4.05 | 3.32 / 3.87 |
| TCSPF (Hot/Avg/Cold) | 6.08 / 5.51 / 5.85 | 5.82 / 5.11 / 5.32 | 5.94 / 5.24 / 5.5 | 5.81 / 5.24 / 5.5 | 5.6 / 5.07 / 5.3 |
| HSPF (Hot/Avg/Cold) | 5.16 / 4.5 / 4.05 | 5.18 / 4.63 / 4.08 | 5.22 / 4.5 / 3.84 | 5.11 / 4.52 / 4.02 | 5.0 / 4.32 / 3.74 |

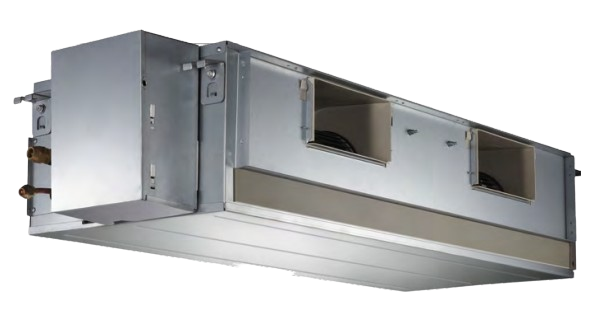

| Indoor Unit | DINLR07B1A | DINLR09B1A | DINLR11B1A | DINLR13B1A | DINLR15B1SA |
| Airflow with Filter (Turbo) (L/s) | 488 | 638 | 727 | 920 | 922 |
| Maximum External Static Pressure (Pa) | 160 | 200 | |||
| Sound Pressure Level @1.5m (dBA) | 41 / 38 / 36 / 33 / 28 | 46 / 40 / 38 / 36 / 28 | 45 / 39 / 37.5 / 36 / 30 | 52 / 46 / 44 / 42 / 34 | 50 / 46.5 / 44 / 42 / 36 |
| Sound Power Level (dBA) | 59.9 | 58.3 | 57.7 | 62.0 | 63.0 |
| Net Dimensions (HxWxD) (mm) | 245x1000x750 | 245x1200x750 | 300x1200x750 | 380x1400x870 | |
| Shipping Dimensions (HxWxD) (mm) | 304x1225x860 | 304x1425x860 | 359x1425x860 | 477x1650x1065 | |
| Net/Gross Weight (kg) | 31.5 / 37.7 | 40.5 / 47.3 | 42.9 / 49.8 | 45 / 51.9 | 65.0 / 80.9 |
| Supply Air Duct Connection HxW (mm) | 178x827 | 178x1027 | 233x1027 | 295x1152 | |
| Return Air Duct Connection HxW (mm) | 212x892 | 212x1092 | 267x1092 | 400x2 (Oval) | |
| Moisture Removal (L/h) | 2.95 | 2.675 | 1.922 | 3.559 | 4.42 |
| Controller Type | Wired Programmable Controller with Wi-Fi Control | ||||
| Operating Range Cool/Heat (C) | 16 to 32 / 0 to 30 | ||||

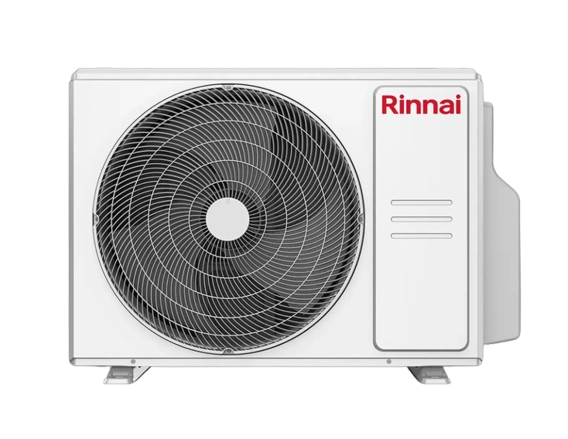

| Outdoor Unit | DONSR07B1LA | DONSR09B1LA | DONSR11B1LA | DONSR13B1LA | DONSR15B1TA |
| Sound Pressure Level @1m (dBA) | 61 | 62 | 64 | 63 | |
| Sound Power Level (dBA) | 66.3 | 68.1 | 70.7 | 71.2 | |
| Net Dimensions (HxWxD) (mm) | 673x890x342 | 810x946x410 | 975x980x415 | ||
| Shipping Dimensions (HxWxD) (mm) | 815x1030x438 | 965x1090x500 | 1120x1145x500 | ||
| Net/Gross Weight (kg) | 44.0 / 57.5 | 75.2 / 91.4 | 89.0 / 103.2 | ||
| Refrigerant Type/Charged Volume (kg) | R32 / 1.5 | R32 / 2.6 | R32 / 3.5 | ||
| Pre-Charged Piping Length (m) | 20 | ||||
| Liquid/Gas Piping Connections (mm) | 9.5 / 15.9 | ||||
| Maximum/Minimum Pipe Length (m) | 50 / 3 | 75 / 3 | |||
| Maximum Vertical Separation (m) | 25 | 30 | |||
| Operating Range Cool/Heat (C) | -15 to 50 / -20 to 24 | ||||
| SKU | DINLR07B1A-SET |
| Brand | Rinnai |
| Shipping Weight | 95.2000kg |
| Shipping Cubic | 0.687943000m3 |
| Unit Of Measure | ea |
