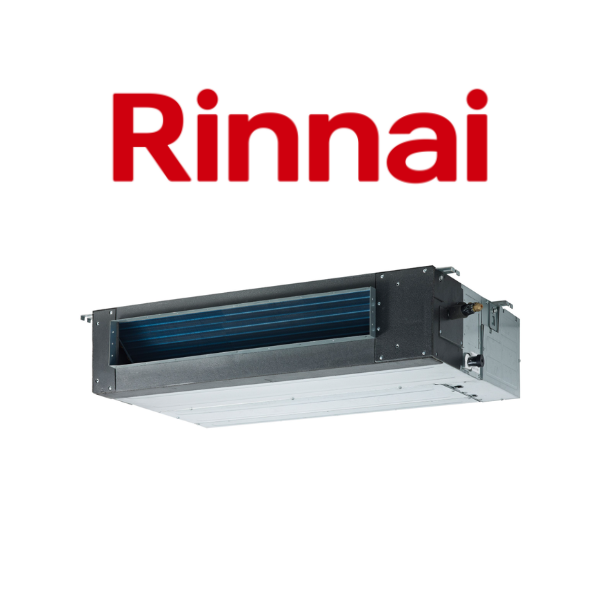

Rinnai DINSD26MBA 2.6kW Indoor Only Multi Slim Ducted Air Conditioning Unit
Rinnai Indoor Multi Slim Ducted Unit
$575.45 Excl GST
*This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.
Rinnai DINSD26MBA 2.6kW Indoor Multi Air Conditioning Slim Ducted Unit
This Slim Ducted Multi Split system delivers efficient heating and cooling for up to six rooms with one outdoor unit, discreet design, quiet operation, and flexible, independent climate control.
Features:
- Up to six rooms with one outdoor unit
- Cooling output of 2.6kW and heating output up to 2.9kW
- Sleek, discreet indoor unit designed to be concealed within a bulkhead or ceiling for a seamless look.
- Quiet operation
- Wi-Fi control enabled
- Includes CNTRLDRCINW2 programmable wired controller
(DINSD26MBA)
| Unit | DINSD26MBA | DINSD35MBA | DINSD50MBA |
|---|---|---|---|
| Net Dimensions (HxWxD) (mm) | 200x700x450 | 245x700x750 | |
| Gross Dimensions (HxWxD) (mm) | 285x860x540 | 298x925x850 | |
| Net Weight (kg) | 16.6 | 24.4 | |
| Gross Weight (kg) | 19.8 | 29 | |
| Air Duct Connection (HxW) Supply (mm) | 152x537 | 178x527 | |
| Air Duct Connection (HxW) Return (mm) | 186x599 | 212x592 | |
| Pipe Size (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | |
| Power Supply (V-Ph-Hz) | 220-240 / 1 / 50 | ||
| Rated Cooling Capacity (kW) | 2.6 | 3.5 | 5.28 |
| Rated Heating Capacity (kW) | 2.9 | 3.8 | 6.0 |
| Rated Input Power (W) | 88 | 91 | 172 |
| Rated Input Current (A) | 0.66 | 0.67 | 1.12 |
| Airflow Hi/Med/Lo (L/s) | 172/150/125 | 183/158/131 | 250/217/181 |
| Sound Pressure @1.4m H/M/L dBA | 35/33/31/27 | 35/33/31/26 | 36.5/34/31/25 |
| Maximum External Static Pressure (Hi) Pa | 100 | 160 | |
| Condensate Drain Pump Connection (mm) | 25 | ||
| Controller | Wired Controller | ||
| Operating Range Cool/Heat oC | 16-32 / 0-30 | ||
| Wi-Fi Compatibility | Standard | ||
| SKU | DINSD26MBA |
| Brand | Rinnai |
| Shipping Weight | 19.8000kg |
| Shipping Width | 0.860m |
| Shipping Height | 0.285m |
| Shipping Length | 0.540m |
| Shipping Cubic | 0.132354000m3 |
| Unit Of Measure | ea |
