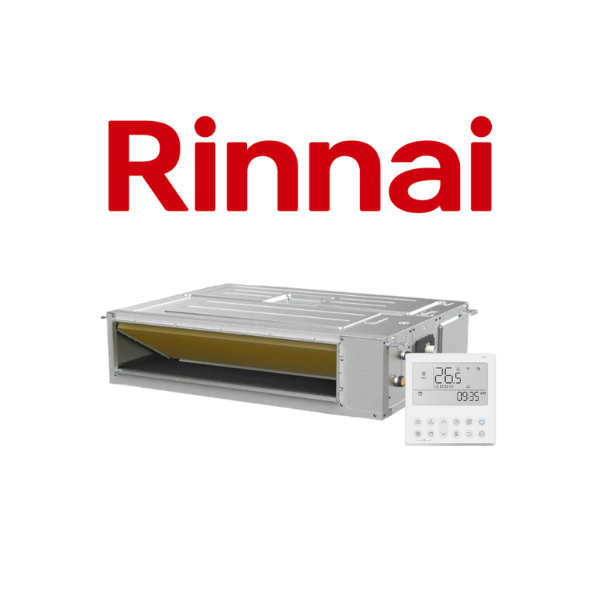

Rinnai DINLR09B1A 9.0kW Indoor Only Multi High Static Ducted Air Conditioning Unit
Rinnai Indoor Multi High Static Ducted Unit
$980.00 Excl GST
*This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.
Rinnai DINLR09B1A 9.0kW Indoor Multi Air Conditioning High Static Ducted Unit
Comfortable temperatures across multiple rooms. Multi Split ducted air conditioning system delivers efficient heating and cooling for up to six rooms with one outdoor unit, discreet design, quiet operation, and flexible, independent climate control.
Features:
- Up to six rooms with one outdoor unit.
- Includes Rinnai wired controller CNTRLDRCINW2
- Quiet operation and great performance.
- Cooling output 9.0kW and heating output up to 11.0kW
- Wi-Fi control enabled.
- Indoor unit can be hidden in a ceiling, non-obtrusive design
- Timer Functionality
(DINLR09B1A)
| Unit | DINLR07B1A | DINLR09B1A | DINLR11B1A |
|---|---|---|---|
| Power Supply (V-Ph-Hz) | 220-240V / 1Ph / 50Hz | ||
| Cooling Capacity Rated (kW) | 7.3 | 9.0 | 10.5 |
| Heating Capacity Rated (kW) | 7.5 | 10.5 | 12.5 |
| Rated Input Power (W) | 145 | 280 | 302 |
| Rated Input Current (A) | 1 | 1.72 | 1.83 |
| Airflow Hi / Med /Lo (L/s) | 472-417-361-278-194 | 639-556-500-417-139 | 722-611-528-417-167 |
| Max External Static Pressure (Hi) (Pa) | 160 | 200 | |
| Sound Pressure @1.4m Hi/Med/Lo dB(A) | 41-38-36-33-28 | 46-40-38-36-28 | 45-39-37.5-36-30 |
| Net Dimensions (HxWxD) (mm) | 245x1000x750 | 245x1200x750 | 300x1200x750 |
| Gross Dimensions (HxWxD) (mm) | 304x1225x860 | 304x1425x860 | 359x1425x860 |
| Net / Gross Weight (kg) | 31.5 / 36.9 | 40.5 / 46.5 | 42.9 / 48.9 |
| Air Duct Connection (HxW) Supply (mm) | 178x827 | 178x1092 | 233x1027 |
| Air Duct Connection (HxW) Return (mm) | 212x892 | 212x1092 | 267x1092 |
| Pipe Size (Liquid/Gas) (mm) | 9.52 / 15.9 | ||
| Condensate Drain Pump Connection (mm) | 25 | ||
| Controller Type | Wired Controller | ||
| Operating Range Cool/Heat oC | 16-32 / 0-30 | ||
| Wi-Fi Compatibility | Standard | ||
| SKU | DINLR09B1A |
| Brand | Rinnai |
| Shipping Weight | 46.5000kg |
| Shipping Width | 1.425m |
| Shipping Height | 0.304m |
| Shipping Length | 0.860m |
| Shipping Cubic | 0.372552000m3 |
| Unit Of Measure | ea |
