Rinnai DINLR24Z1SA-SET 24.0kW Ducted 3 Phase Air Conditioning System
DINLR24Z1SA / DONSR24Z3TA Rinnai Ducted System
$6,566.36 Excl GST

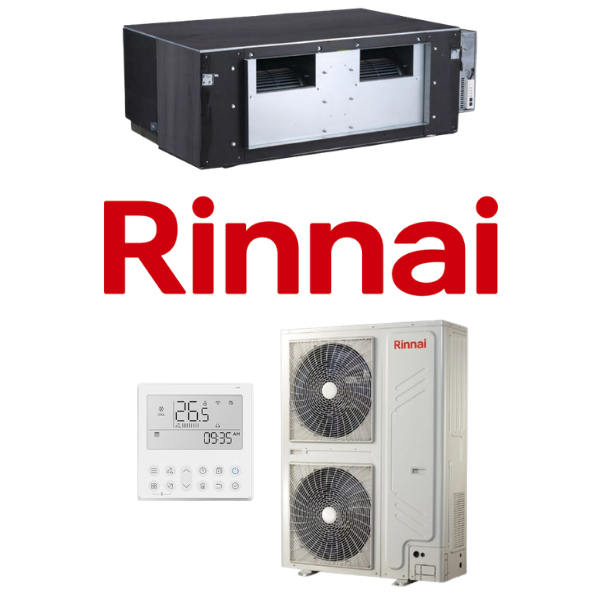

Rinnai DINLR24Z1SA-SET 24.0kW Ducted Three Phase System - Includes Wall Controller and Outdoor Unit DONSR24Z3TA
Powerful whole-home comfort. The 24kW ducted system delivers efficient, discreet heating and cooling with inverter technology, and quiet operation for reliable whole-home comfort year-round.
Key Features:
- Flexible 8 Zone Climate Control - Enjoy personalised comfort with independent control of up to eight zones, allowing you to switch each zone on or off and adjust temperatures directly from the main controller.
- Self-Cleaning Air Purity - Deep cleaning technology with 56°C sterilisation helps remove bacteria and reduce dust build-up.
- Flexible Installation Made Simple - The innovative splittable design allows the unit to be transported in separate sections and assembled on-site, making installation faster and easier in homes with limited roof space. (Available in 15.0kW, 18.0kW, 20.0kW, and 24.0kW models)
- Long-Lasting Protection - Advanced Gold Guard technology helps safeguard the condenser coil from corrosion.
- Eco-Friendly R32 Refrigerant
- Wi-Fi Control and Remote Schedules
- Humidity Control - Manage room humidity with Dry Mode for balanced comfort
- Quiet Operation
(DINLR24Z1SA-SET)
| System | DINLR15B1SA-T-SET | DINLR18B1SA-SET | DINLR20Z1SA-SET | DINLR24Z1SA-SET |
|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 14.0 | 17.0 | 20.0 | 24.0 |
| Rated Heating Capacity (kW) | 17.0 | 18.0 | 20.0 | 26.0 |
| Power Supply (V / Ph / Hz) | 220-240 / 1 / 50 | 380-415 / 3 / 50 | ||
| AEER / ACOP | 3.56 / 4.04 | 3.31 / 3.92 | 3.3 / 3.8 | 3.5 / 3.7 |

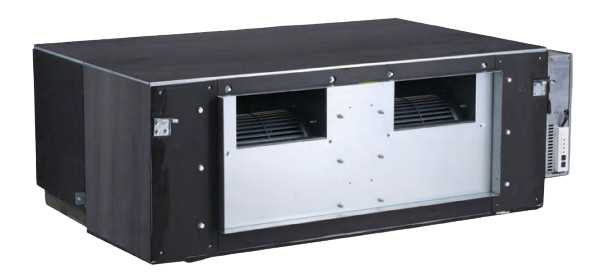

| Indoor Unit | DINLR15B1SA | DINLR18B1SA | DINLR20Z1SA | DINLR24Z1SA |
| Rated Input Power Cool/Heat (W) | 631 | 642 | 700 | 840 |
| Rated Input Current Cool/Heat (A) | 3.38 | 3.44 | 3.18 | 3.82 |
| Max Airflow (L/s) | 922 | 925 | 1333 | 1444 |
| Maximum External Static Pressure (Pa) | 200 | 280 | ||
| Sound Pressure Level (dBA) | 50 / 46.5 / 44 / 42 / 36 | 51 / 49 / 47 / 43 / 36 | 50 / 48 / 44 / 43 / 41 / 40 | 51 / 49 / 47 / 45 / 44 / 42 / 41 |
| Net Dimensions (HxWxD) (mm) | 380x1400x870 | 477x1300x910 | ||
| Shipping Dimensions (HxWxD) (mm) | 477x1650x1065 | 665x1580x1090 | ||
| Net/Gross Weight (kg) | 65.0 / 80.9 | 67.0 / 81.9 | 82 / 120 | |
| Supply Air Duct Connection HxW (mm) | 295x1152 | 350x1120 | ||
| Return Air Duct Connection HxW (mm) | 400x2 (Oval) | 393x1118 | ||
| Controller Type | Wired Programmable Controller with Wi-Fi Control | Wired Programmable Controller CNTRLDRCI86TW (Wi-Fi) | ||
| Operating Range Cool/Heat (C) | 16 to 32 / 0 to 30 | 15 - 32 | ||

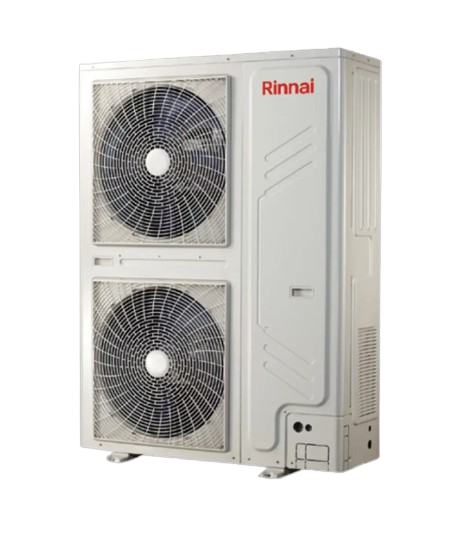

| Outdoor Unit | DONSR15B1TA | DONSR18B1TA | DONSR20Z3TA | DONSR24Z3TA |
| Sound Pressure Level @1m (dBA) | 65 | 63 | 58 | 59 |
| Sound Power Level (dBA) | 70 | 72 | 78 | |
| Net Dimensions (HxWxD) (mm) | 1333x952x415 | 1558x1120x528 | ||
| Shipping Dimensions (HxWxD) (mm) | 1500x1095x495 | 1720x1305x565 | ||
| Net/Gross Weight (kg) | 93 / 109.6 | 94 / 110.1 | 144 / 160 | 145 / 161 |
| Refrigerant Type/Charged Volume (kg) | R32 / 3.6 | R32 / 3.8 | R410A / 7.7 | |
| Pre-Charged Piping Length (m) | 20 | |||
| Liquid/Gas Piping Connections (mm) | 9.5 / 15.9 | 9.5 / 19.0 | 12.7 / 19.0 | 12.7 / 22.2 |
| Maximum Pipe Length (m) | 75 | 50 | ||
| Maximum Vertical Separation (m) | 30 | 20 | ||
| Operating Range Cool/Heat (C) | -15 to 50 / -20 to 24 | -5 to 48 / -20 to 24 | ||
| SKU | DINLR24Z1SA-SET |
| Brand | Rinnai |
| Shipping Weight | 281.0000kg |
| Shipping Cubic | 2.413462000m3 |
| Unit Of Measure | ea |
