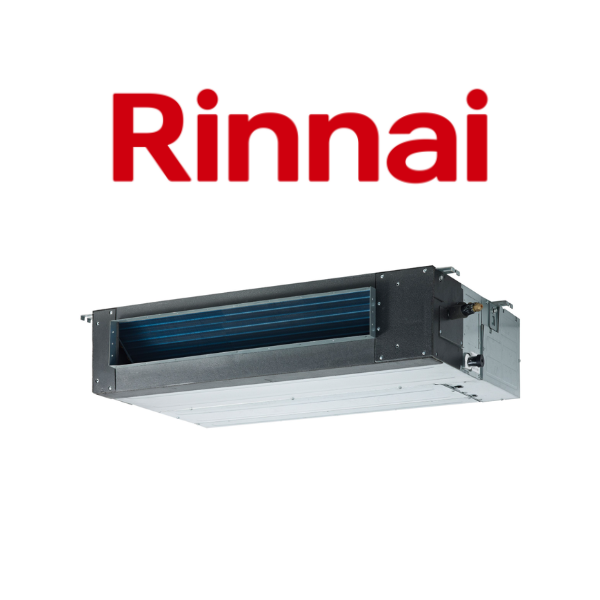

Rinnai DINSD26MB 2.6kW Indoor Multi Air Conditioning Mid Static Ducted Unit

Ideal temperatures for more than one room - When your home requires heating and cooling in more than one room, or independent room control is needed, the Rinnai Inverter Multi-Split Slim Ducted units are the simplest way to heat or cool up to five individual rooms with only one outdoor unit.

Compact and space saving in design, the Rinnai Inverter Multi-Split Slim Ducted indoor unit is ideal for tight spaces. Hidden away in a bulkhead or a ceiling cavity, with excellent acoustic characteristics, this ultra slim unit also has flexible installation configuration options.

Features:

Compact and slim
Non-obtrusive to your architectural designs
Great performance
Timer functionality
DC Inverter

(DINSD26MB)

Unit	DINSD26MB	DINSD35MB	DINSD50MB	DINSD70MB
Net Dimensions (HxWxD) (mm)	200x700x506		210x880x674	249x1100x774
Gross Dimensions (HxWxD) (mm)	285x860x540		280x1070x725	315x1305x805
Net Weight (kg)	18		24	32
Gross Weight (kg)	22		29	39
Air Duct Connection (H x W) Supply (mm)	152x537		136x706	175x926
Air Duct Connection (H x W) Return (mm)	186x599		190x782	228x1001
Pipe Size (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7	9.52 / 15.9
Power Supply (V-Ph-Hz)	220-240 / 1 / 50
Rated Capacity Cool/Heat (kW)	2.6 / 2.9	3.5 / 3.8	5.2 / 5.5	7.1 / 7.3
Rated Input Power Cool/Heat (W)	180 / 180	185 / 185	200 / 200
Rated Input Current Cool/Heat (A)	1.1 / 1.1		1.3 / 1.3
Airflow Hi/Med/Lo (L/s)	500 / 340 / 230		600 / 480 / 300	880 / 650 / 350
Sound Pressure @1m Hi/Med/Lo dB(A)	40 / 34 / 27			41 / 38 / 33
Maximum External Static Pressure (Hi) (Pa)	60		100	160
Condensate Drain Pump Connection	OD 25
Controller	Wired Controller - 12m Cable
Operating Range Cool/Heat ^oC	17 to 32 / 0 to 30
Wi-Fi Compatibility	Optional

SKU	DINSD26MB
Brand	Rinnai
Shipping Weight	22.0000kg
Shipping Width	0.540m
Shipping Height	0.285m
Shipping Length	0.860m
Shipping Cubic	0.132354000m3
Unit Of Measure	ea
