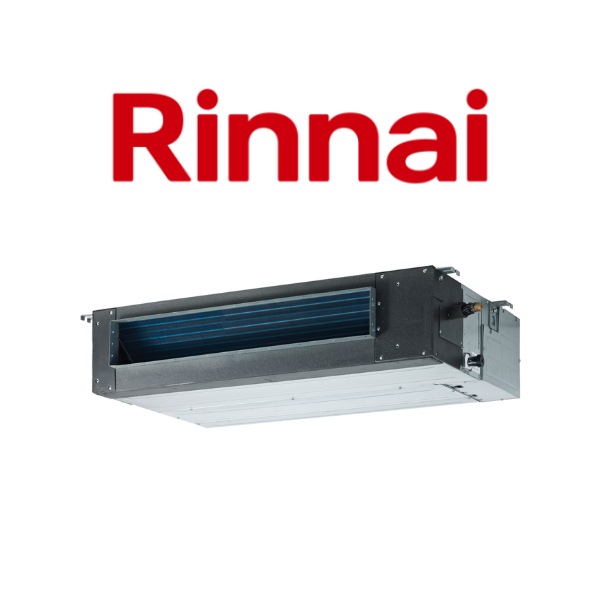

Rinnai DINSD70MB 7.0kW Indoor Multi Air Conditioning Mid Static Ducted Unit
Rinnai Indoor Ducted Multi
$662.73 Excl GST
Rinnai DINSD70MB 7.0kW Indoor Multi Air Conditioning Mid Static Ducted Unit
Ideal temperatures for more than one room - When your home requires heating and cooling in more than one room, or independent room control is needed, the Rinnai Inverter Multi-Split Slim Ducted units are the simplest way to heat or cool up to five individual rooms with only one outdoor unit.
Compact and space saving in design, the Rinnai Inverter Multi-Split Slim Ducted indoor unit is ideal for tight spaces. Hidden away in a bulkhead or a ceiling cavity, with excellent acoustic characteristics, this ultra slim unit also has flexible installation configuration options.
Features:
- Compact and slim
- Non-obtrusive to your architectural designs
- Great performance
- Timer functionality
- DC Inverter
(DINSD70MB)
| Unit | DINSD26MB | DINSD35MB | DINSD50MB | DINSD70MB |
|---|---|---|---|---|
| Net Dimensions (HxWxD) (mm) | 200x700x506 | 210x880x674 | 249x1100x774 | |
| Gross Dimensions (HxWxD) (mm) | 285x860x540 | 280x1070x725 | 315x1305x805 | |
| Net Weight (kg) | 18 | 24 | 32 | |
| Gross Weight (kg) | 22 | 29 | 39 | |
| Air Duct Connection (H x W) Supply (mm) | 152x537 | 136x706 | 175x926 | |
| Air Duct Connection (H x W) Return (mm) | 186x599 | 190x782 | 228x1001 | |
| Pipe Size (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 9.52 / 15.9 | |
| Power Supply (V-Ph-Hz) | 220-240 / 1 / 50 | |||
| Rated Capacity Cool/Heat (kW) | 2.6 / 2.9 | 3.5 / 3.8 | 5.2 / 5.5 | 7.1 / 7.3 |
| Rated Input Power Cool/Heat (W) | 180 / 180 | 185 / 185 | 200 / 200 | |
| Rated Input Current Cool/Heat (A) | 1.1 / 1.1 | 1.3 / 1.3 | ||
| Airflow Hi/Med/Lo (L/s) | 500 / 340 / 230 | 600 / 480 / 300 | 880 / 650 / 350 | |
| Sound Pressure @1m Hi/Med/Lo dB(A) | 40 / 34 / 27 | 41 / 38 / 33 | ||
| Maximum External Static Pressure (Hi) (Pa) | 60 | 100 | 160 | |
| Condensate Drain Pump Connection | OD 25 | |||
| Controller | Wired Controller - 12m Cable | |||
| Operating Range Cool/Heat oC | 17 to 32 / 0 to 30 | |||
| Wi-Fi Compatibility | Optional | |||
| SKU | DINSD70MB |
| Brand | Rinnai |
| Shipping Weight | 39.0000kg |
| Shipping Width | 0.805m |
| Shipping Height | 0.315m |
| Shipping Length | 1.305m |
| Shipping Cubic | 0.330915375m3 |
| Unit Of Measure | ea |
