Rinnai VX Series HSNRVX25 2.6kW Wall Split Air Conditioning System with Wi-Fi
Rinnai Wall Split Air Conditioner (Wi-Fi)
$858.18 Excl GST

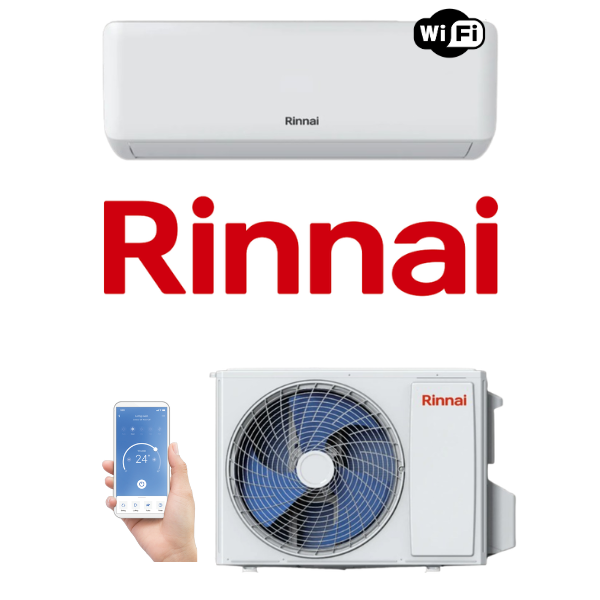

Rinnai VX Series HSNRVX25 2.5kW Wall Split Air Conditioner (Built-In Wi-Fi) - Includes Outdoor Unit HONRVX25 and Wireless Controller
Powerful comfort, anywhere in your home. Providing reliable heating and cooling with Wi‑Fi control, the VX Series 2.5kW split system delivers efficient comfort, strong airflow, and energy‑efficient performance for small rooms.
Features:
- Powerful Comfort Corner to Corner: High-performance airflow reaches that help deliver consistent comfort and superior air distribution throughout larger spaces.
- Self-Cleaning Air Purity: Deep cleaning technology with 57°C sterilisation helps remove bacteria and reduce dust build-up.
- Intelligent Self-Diagnosis: Identiy potential issues quickly with the Self-Diagnosis Function for easy troubleshooting and added peace of mind.
- Eco-Friendly R32 Refrigerant with energy-saving inverter technology.
- Ideal for bedrooms (up to 20m2).
- Extensive range of features including 3D Airflow, Dry Mode and Demand Control.
- Quiet Operation
- Wi-Fi Control
(HSNRVX25)
| System | HSNRTV25 | HSNRTV35 | HSNRTV50 | HSNRTV70 |
|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 2.6 | 3.5 | 5.3 | 7.0 |
| Rated Heating Capacity (kW) | 2.9 | 4.0 | 5.3 | 8.2 |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||
| Recommended Circuit Breaker (A) | 16 | 20 | ||
| Connectivity | Wi-Fi Enabled | |||
| Demand Response Enabling Device | DRED Enabled | |||
| Cooling Capacity Range (kW) | 0.3 - 4.0 | 0.8 - 4.1 | 1.3 - 5.8 | 1.8 - 7.4 |
| Heating Capacity Range (kW) | 0.3 - 4.2 | 0.8 - 4.5 | 1.3 - 6.0 | 1.8 - 8.3 |
| Rated Power Input Cool/Heat (W) | 670 / 670 | 940 / 1080 | 1630 / 1560 | 2150 / 2450 |
| Rated Current Cool/Heat(A) | 3.5 / 3.5 | 4.8 / 5.0 | 7.4 / 7.2 | 9.5 / 11.0 |
| AEER/ACOP (W/W) | 3.911 / 4.296 | 3.694 / 3.678 | 3.239 / 3.384 | 3.262 / 3.336 |
| Star Rating: Hot/Average/Cold (Cool) | 6.5 / 5.0 / 5.5 | 5.0 / 4.5 / 5.0 | 4.0 / 3.5 / 4.0 | 3.5 / 3.5 / 3.5 |
| Star Rating: Hot/Mixed/Cold (Heat) | 3.5 / 3.0 / 2.5 | 3.5 / 2.5 / 1.5 | 3.5 / 2.5 / 2.0 | 3.0 / 2.0 / 1.5 |
| Max Input Power Cool/Heat (W) | 1500 | 1600 | 2400 | 3400 |
| Max Input Current Cool/Heat (A) | 7.5 | 8.0 | 12.0 | 16.0 |
| Suitable Area Coverage up to 2.6m Ins Ceiling (m2) | 13-17 | 18-24 | 25-34 | 35-47 |

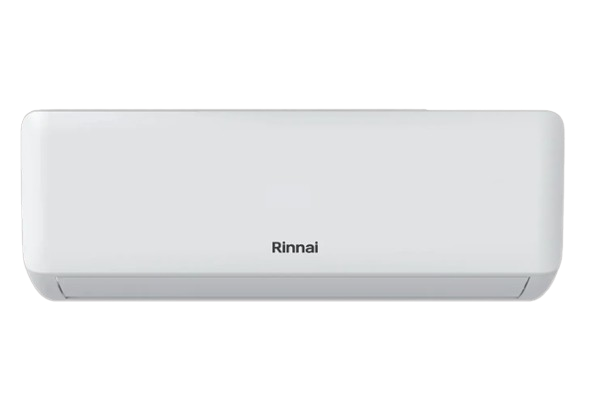

| Indoor Unit | HINRVX25 | HINRVX35 | HINRVX50 | HINRVX70 |
| Air Flow (Turbo/H/M/L/Min) (L/s) Cool | 156/139/128/119 | 167/147/132/117 | 236/203/181/153 | 361/333/281/242 |
| Air Flow (Turbo/H/M/L/Min) (L/s) Heat | 181/167/147/139 | 167/153/133/117 | 250/217/194/153 | 333/286/258/242 |
| Moisture Removal (L/h) | 0.5 | 1.0 | 1.6 | 3.0 |
| Sound Power Level dB(A) | 50 | 51 | 58 | 63 |
| Sound Pressure Level @1m (Tbo/H/M/L/Min) dBA | 42 / 39 / 35 / 31 | 43 / 41 / 38 / 34 | 48 / 44 / 40 / 37 | 53 / 49 / 45 / 41 |
| Unit Dimensions (HxWxD) (mm) | 285x750x200 | 310x900x225 | 330x1080x234 | |
| Packing Dimensions (HxWxD) (mm) | 346x806x267 | 372x950x292 | 390x1135x302 | |
| Net/Gross Weight (kg) | 7.5 / 9.0 | 11.0 / 14.0 | 13.0 / 16.0 | |
| Operating Range Cool/Heat (C) | 16 / 32 | |||

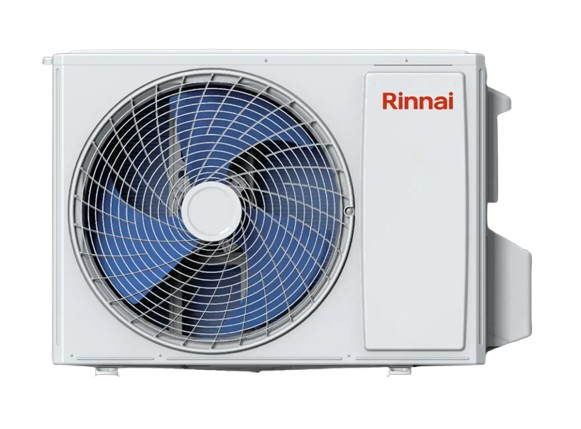

| Outdoor Unit | HONRVX25 | HONRVX35 | HONRVX50 | HONRVX70 |
| Sound Power Level dB(A) | 60 | 63 | ||
| Sound Pressure Level @1m dB(A) | 49 | 50 | 53 | 56 |
| Unit Dimensions (HxWxD) (mm) | 530x705x279 | 555x785x300 | 700x900x350 | |
| Packing Dimensions (HxWxD) (mm) | 595x825x326 | 615x905x372 | 757x1015x415 | |
| Net/Gross Weight (kg) | 24 / 27 | 28 / 31 | 41 / 43 | |
| Refrigerant Type/Amount (kg) | R32 / 0.5 | R32 / 1.03 | R32 / 1.30 | |
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | |
| Maximum Pipe Length (m) | 20 | 30 | ||
| Chargeless Length (m) | 10 | |||
| Extra Charge for Lengths >10m (g/m) | 16 | 24 | ||
| Maximum Vertical Separation (m) | 12 | 20 | ||
| Ambient Temp Limits Cool/Heat (C) | -15 to 52 / -15 to 24 | |||
| SKU | HSNRVX25 |
| Brand | Rinnai |
| Shipping Weight | 36.0000kg |
| Shipping Cubic | 0.234485000m3 |
| Unit Of Measure | ea |
