Rinnai VX Series HSNRVX70 7.0kW Wall Split Air Conditioning System with Wi-Fi
Rinnai Wall Split Air Conditioner (Wi-Fi)
$1,662.73 Excl GST

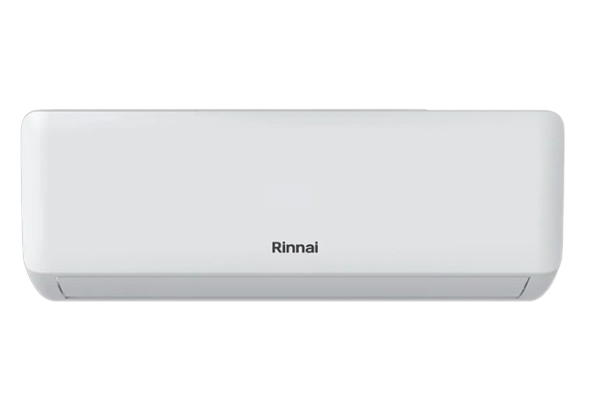

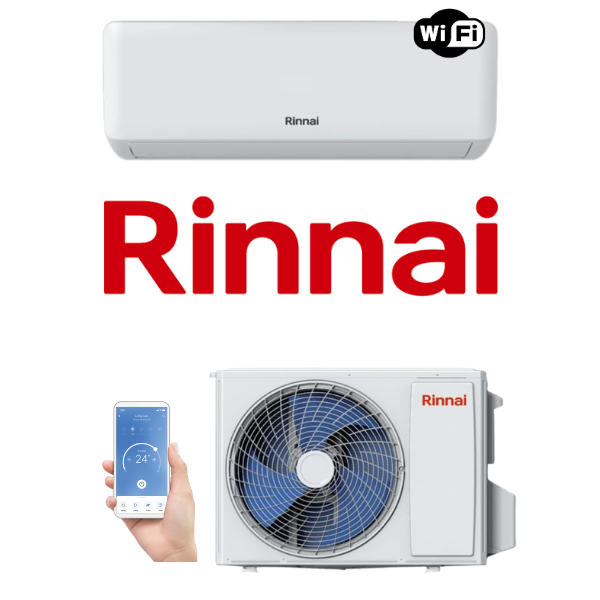

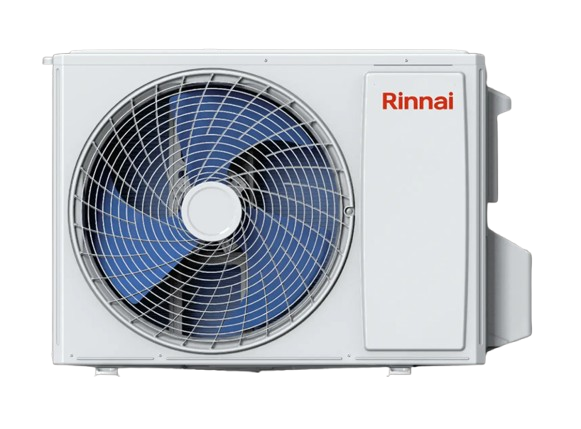

Rinnai VX Series HSNRVX70 7.0kW Wall Split Air Conditioner (Built-In Wi-Fi) - Includes Outdoor Unit HONRVX70 and Wireless Controller
Powerful comfort for extra-large rooms and open spaces. Delivering powerful comfort, the VX Series 7.0kW split system provides efficient heating and cooling with Wi‑Fi control, strong airflow, and reliable performance for large spaces.
Features:
- Powerful Comfort Corner to Corner: High-performance airflow reaches that help deliver consistent comfort and superior air distribution throughout larger spaces.
- Self-Cleaning Air Purity: Deep cleaning technology with 57°C sterilisation helps remove bacteria and reduce dust build-up.
- Intelligent Self-Diagnosis: Identiy potential issues quickly with the Self-Diagnosis Function for easy troubleshooting and added peace of mind.
- Eco-Friendly R32 Refrigerant with energy-saving inverter technology.
- Ideal for large open-plan and commercial spaces (50-70m2).
- Extensive range of features including 3D Airflow, Dry Mode and Demand Control.
- Quiet Operation
- Wi-Fi Control
(HSNRVX70)
| System | HSNRTV25 | HSNRTV35 | HSNRTV50 | HSNRTV70 |
|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 2.6 | 3.5 | 5.3 | 7.0 |
| Rated Heating Capacity (kW) | 2.9 | 4.0 | 5.3 | 8.2 |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||
| Recommended Circuit Breaker (A) | 16 | 20 | ||
| Connectivity | Wi-Fi Enabled | |||
| Demand Response Enabling Device | DRED Enabled | |||
| Cooling Capacity Range (kW) | 0.3 - 4.0 | 0.8 - 4.1 | 1.3 - 5.8 | 1.8 - 7.4 |
| Heating Capacity Range (kW) | 0.3 - 4.2 | 0.8 - 4.5 | 1.3 - 6.0 | 1.8 - 8.3 |
| Rated Power Input Cool/Heat (W) | 670 / 670 | 940 / 1080 | 1630 / 1560 | 2150 / 2450 |
| Rated Current Cool/Heat(A) | 3.5 / 3.5 | 4.8 / 5.0 | 7.4 / 7.2 | 9.5 / 11.0 |
| AEER/ACOP (W/W) | 3.911 / 4.296 | 3.694 / 3.678 | 3.239 / 3.384 | 3.262 / 3.336 |
| Star Rating: Hot/Average/Cold (Cool) | 6.5 / 5.0 / 5.5 | 5.0 / 4.5 / 5.0 | 4.0 / 3.5 / 4.0 | 3.5 / 3.5 / 3.5 |
| Star Rating: Hot/Mixed/Cold (Heat) | 3.5 / 3.0 / 2.5 | 3.5 / 2.5 / 1.5 | 3.5 / 2.5 / 2.0 | 3.0 / 2.0 / 1.5 |
| Max Input Power Cool/Heat (W) | 1500 | 1600 | 2400 | 3400 |
| Max Input Current Cool/Heat (A) | 7.5 | 8.0 | 12.0 | 16.0 |
| Suitable Area Coverage up to 2.6m Ins Ceiling (m2) | 13-17 | 18-24 | 25-34 | 35-47 |
| Indoor Unit | HINRVX25 | HINRVX35 | HINRVX50 | HINRVX70 |
| Air Flow (Turbo/H/M/L/Min) (L/s) Cool | 156/139/128/119 | 167/147/132/117 | 236/203/181/153 | 361/333/281/242 |
| Air Flow (Turbo/H/M/L/Min) (L/s) Heat | 181/167/147/139 | 167/153/133/117 | 250/217/194/153 | 333/286/258/242 |
| Moisture Removal (L/h) | 0.5 | 1.0 | 1.6 | 3.0 |
| Sound Power Level dB(A) | 50 | 51 | 58 | 63 |
| Sound Pressure Level @1m (Tbo/H/M/L/Min) dBA | 42 / 39 / 35 / 31 | 43 / 41 / 38 / 34 | 48 / 44 / 40 / 37 | 53 / 49 / 45 / 41 |
| Unit Dimensions (HxWxD) (mm) | 285x750x200 | 310x900x225 | 330x1080x234 | |
| Packing Dimensions (HxWxD) (mm) | 346x806x267 | 372x950x292 | 390x1135x302 | |
| Net/Gross Weight (kg) | 7.5 / 9.0 | 11.0 / 14.0 | 13.0 / 16.0 | |
| Operating Range Cool/Heat (C) | 16 / 32 | |||
| Outdoor Unit | HONRVX25 | HONRVX35 | HONRVX50 | HONRVX70 |
| Sound Power Level dB(A) | 60 | 63 | ||
| Sound Pressure Level @1m dB(A) | 49 | 50 | 53 | 56 |
| Unit Dimensions (HxWxD) (mm) | 530x705x279 | 555x785x300 | 700x900x350 | |
| Packing Dimensions (HxWxD) (mm) | 595x825x326 | 615x905x372 | 757x1015x415 | |
| Net/Gross Weight (kg) | 24 / 27 | 28 / 31 | 41 / 43 | |
| Refrigerant Type/Amount (kg) | R32 / 0.5 | R32 / 1.03 | R32 / 1.30 | |
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | |
| Maximum Pipe Length (m) | 20 | 30 | ||
| Chargeless Length (m) | 10 | |||
| Extra Charge for Lengths >10m (g/m) | 16 | 24 | ||
| Maximum Vertical Separation (m) | 12 | 20 | ||
| Ambient Temp Limits Cool/Heat (C) | -15 to 52 / -15 to 24 | |||
| SKU | HSNRVX70 |
| Brand | Rinnai |
| Shipping Weight | 59.0000kg |
| Shipping Cubic | 0.452547000m3 |
| Unit Of Measure | ea |
