Panasonic S-140PE1R5B 14.0kW 1 Phase Ducted System

S-140PE1R5B/U-140PZ2R5 Ducted System Air Conditioner

$4,928.00 Incl GST
$4,480.00 Excl GST
In Stock

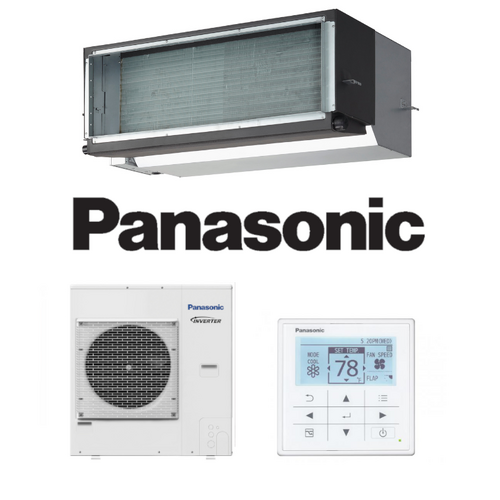

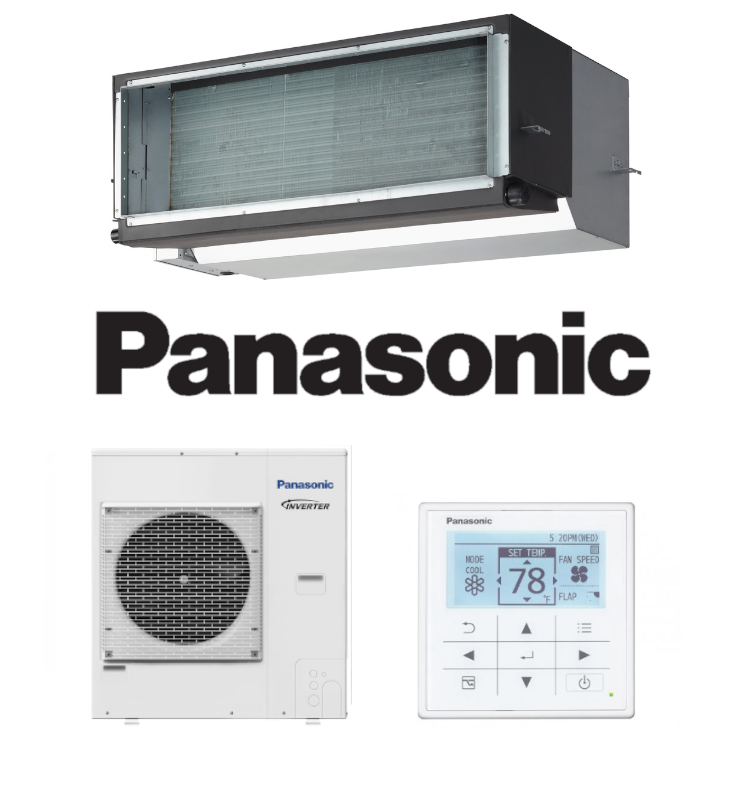

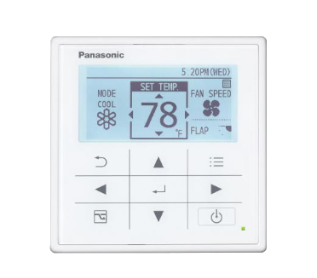

Panasonic S-140PE1R5B 14.0kW Ducted System - Includes Delux Backlit Wired Controller CZ-RTC5A & Outdoor Unit U-60PZ2R5

Consisting of an outdoor unit and a concealed indoor unit, a ducted system delivers air through ducting pipes (usually in the ceiling) into each room via vents on the floor, wall or ceiling. Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.

Features:

  • Panasonic Premium Inverter Ducted air conditioner reduces wasteful operation, giving you energy saving and better performance.
  • Panasonic Premium Inverter Ducted air conditioners can operate with higher power during the start-up period to cool and heat the room faster than conventional air conditioners.
  • Our Premium Inverter ducted systems boast an outstanding operating temperature range. Cooling operation is possible even when it is a scorching 46ºC outside, which is perfect for Australia’s hot summer days and the heating operation is designed to operate even when it’s a freezing -20ºC outside, so even the coldest parts of Australia are covered.

(S-140PE1R5B)

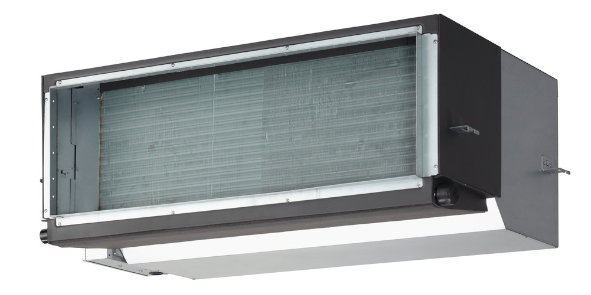

INDOOR UNIT S-140PE1R5B

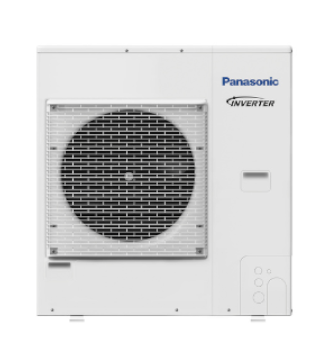

OUTDOOR UNIT U-140PE1R5A
Rated Capacity Cool (kW) 14.0
Heat (kW) 14.0
Capacity Range Cool (kW) (3.3 - 15.0)
Heat (kW) (3.4 - 16.0)
Power Input (Rated) Cool (kW) 4.44
Heat (kW) 3.825
E.E.R./C.O.P. Cool/Heat 3.15/3.66
Air Flow Rate (Rated) I/S 1,000
Indoor Sound Level (H/M/L) dBA 51/49/47
Piping Length (m) 5 - 50
Indoor Fan Speeds (No.)   3
Dimensions (HxWxD) Indoor (mm) 430x1100(+100)x700
Outdoor (mm) 996 x 980 x 370
Weight Indoor(kg) 53
Outdoor(kg) 94
Power Supply V/Hz 1 Phase, 240V, 50Hz
Compressor Type   TBA
Refrigerant   R32
Pipe Sizes Liquid (mm) Ø9.52
SKU S-140PE1R5B
Brand Panasonic
Shipping Weight 147.0000kg
Shipping Cubic 0.692250000m3
