Fujitsu SET-ASTG34CMTA 9.4kW Wall Split System Cooling Only

ASTG34CMTA/AOTG34CMTA Wall Split Air Conditioner

$2,986.00 Incl GST
$2,714.55 Excl GST
In Stock

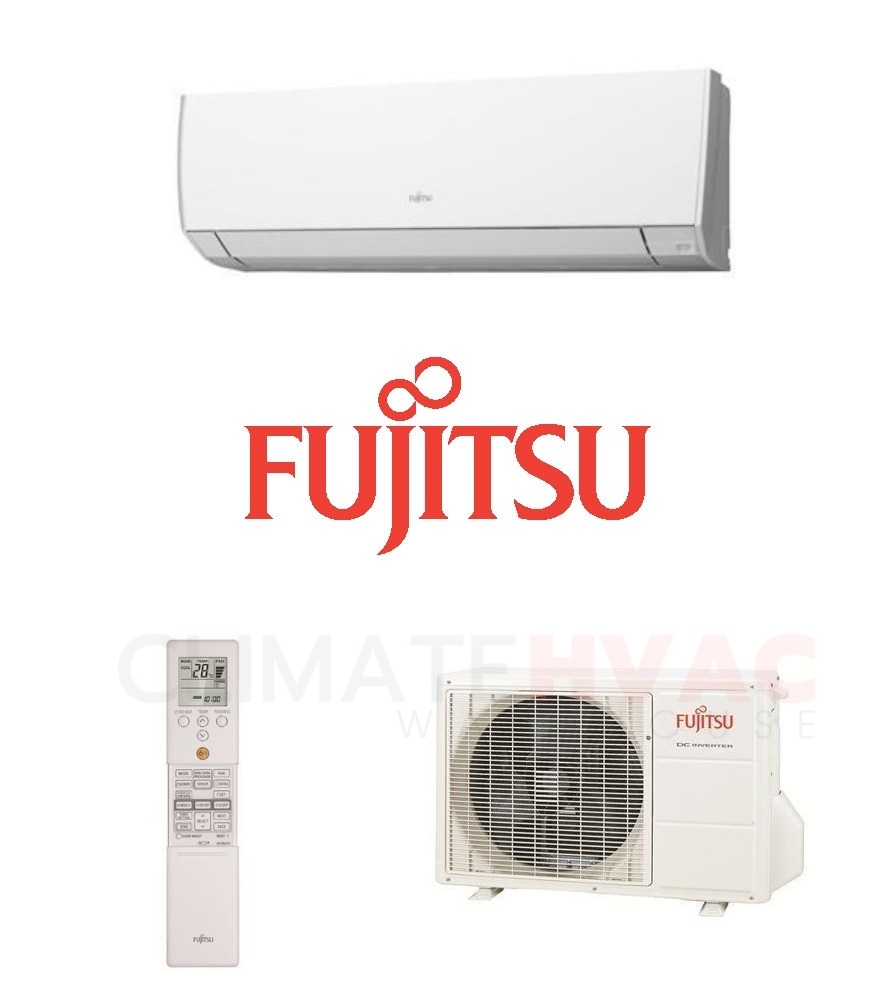

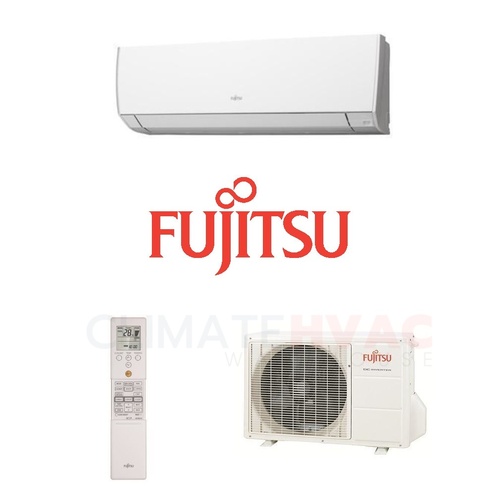

Fujitsu SET-ASTG34CMTA 9.4kW Wall Split System (Cooling Only) - Includes Outdoor Unit AOTG34CMTA

Fujitsu General’s KM and CM series have a stylish design across the range, to blend in seamlessly with your home’s decor. The KM and CM series are the most energy efficient air conditioners Fujitsu have designed. Some models up to a 5 star energy rating.



Features:

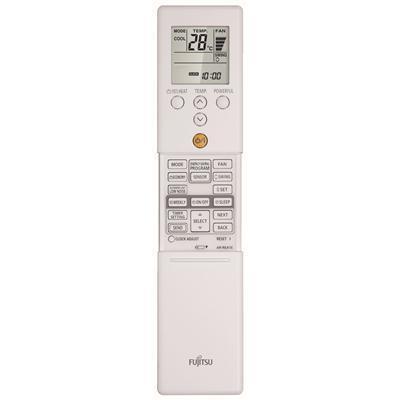

  • The KM and CM ranges are accompanied by a simple and easy to use controller, giving you simple control of your climate, right at your fingertips. With features such as low noise mode, economy operation and program timers, you can tailor your comfort needs at the touch of a button.
  • The KM and CM series are amongst the most energy efficient air conditioners Fujitsu has designed. With built-in features such as high efficiency DC componentry, Power Diffusers, and High Density Multi-path Heat Exchangers, these air conditioners use less power than ever before.
  • All models in the KM and CM series contain human sensor control, an intelligent feature which detects movement of people to deliver optimum efficiency and temperature control.

(SET-ASTG34CMTA)

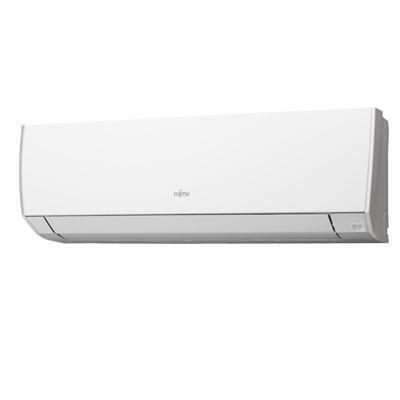

Indoor Unit ASTG34CMTA

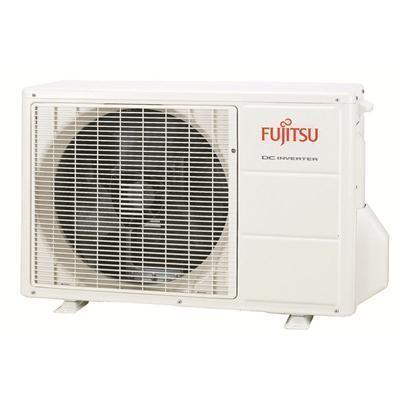

Outdoor Unit AOTG34CMTA
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
(kW) 9.4
Capacity Range
(kW) 2.9 ~ 11.2
Power Input (Rated)
(kW) 2.78
Input Power Range
(kW) 0.59 ~ 4.03
EER 3.38
Energy Star Ratings
3.0 / 2.5 / 2.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.628 / 4.317 / 4.482
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 5.018 / 5.153 / 5.599
Dimensions (HxWxD)
Indoor (mm) 340 x 1150 x 280
Outdoor (mm) 914 x 970 x 370
Weight
Indoor (kg) 18
Outdoor (kg) 74
Refrigerant Type R32
Refrigerant Amount (kg) 2.00
Pre-Charged to Pipe (m) 30
Max Pipe Length (m) 75
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -10 ~ 46
Indoor Airflow Rate
(l/s) 389
Indoor Sound Pressure Level (H/SL)
(dBA) 51 / 32
Outdoor Sound Pressure Level (H/SL)
(dBA) -
Outdoor EPA Sound Power Level (H)
(dBA) 65
SKU SET-ASTG34CMTA
Brand Fujitsu
Shipping Weight 92.0000kg
Shipping Cubic 0.437515000m3
