TECO TDS-TSO100HVWDG 10.0kW 1 Phase Ducted Air Conditioning System
TDS100HVWDG / TSO100HVWDG Ducted System
$3,079.09 Excl GST

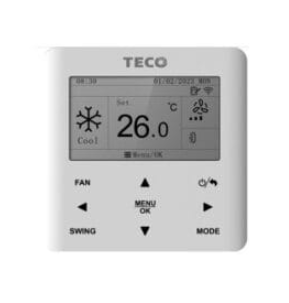

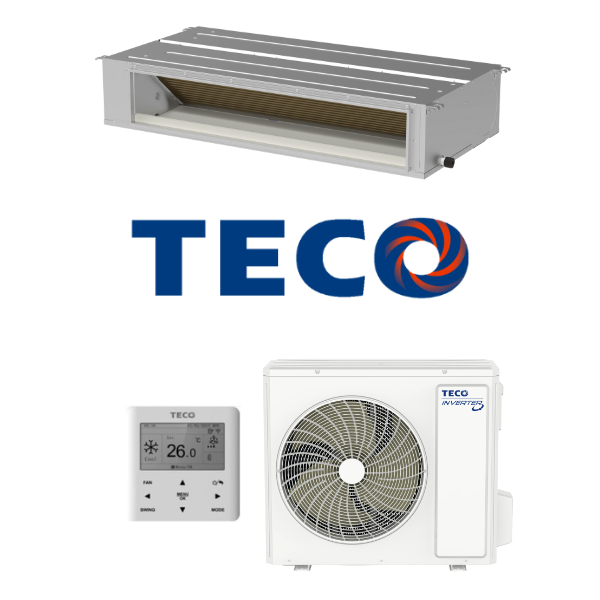

TECO TDS-TSO100HVWDG 10.0kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller

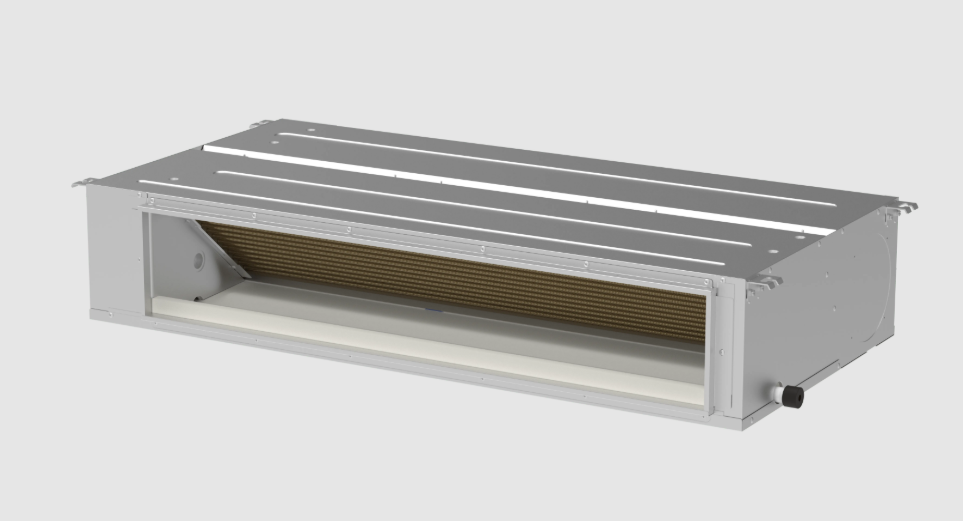

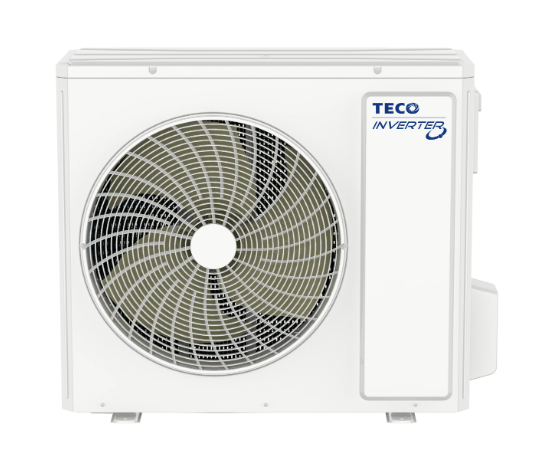

The TECO 10.0kW Ducted System offers powerful, energy-efficient climate control with a low profile indoor unit height of just 260mm, making it ideal for bulkheads and spaces with limited ceiling clearance. Designed for durability, it features a Blackfin-coated condenser coil in the outdoor unit and a Goldfin-coated evaporator coil in the indoor unit to enhance corrosion resistance and ensure long-term efficiency. With an integrated drain pump for flexible installation and built-in WiFi for remote control, convenience and user-friendly management are prioritised.
Features:
- Compact Design with a 260mm height for the indoor unit
- Dynamic Temperature Control
- Plasmacluster Ion Sterilisation
- In-Built WiFi
- In-Built Drain Pump
- Blackfin Coating on Outdoor Unit
- Goldfin Coating on Indoor Unit
- X-Fan Function to remove excessive Moisture accumulation on shut down
- Fresh Air Intake Control
- Wide Voltage Range Operation
- BMS Control Capability
- Insect-Proof Outdoor Unit Electric Box – Sealed to ≤3mm.
- DRED Enabled
(TDS-TSO100HVWDG)
| System | TDS-TSO100HVWDG | TDS-TSO125HVSWDG | TDS-TSO140HVSWDG | TDS-TSO160HVSWDG | TDS-TSO170HDVM | |
|---|---|---|---|---|---|---|
| Indoor Unit | TDS100HVWDG | TDS125HVSWDG | TDS140HVSWDG | TDS160HVSWDG | TDS170HDVM | |
| Outdoor Unit | TSO100HVWDG | TSO125HVWDG | TSO140HVWDG | TSO160HVWDG | TSO170HVDM | |
| Power Supply | 1 Phase, 220-240V, 50Hz | |||||
| Cooling Capacity Rated/Min-Max | kW | 10.0 (3.0-11.7) | 12.5 (3.6-14.0) | 14.0 (4.2-16.0) | 16.0 (4.8-18.0) | 17.0 (6.8-19.5) |
| Heating Capacity Rated/Min-Max | 12.0 (3.6-13.5) | 14.0 (4.2-15.0) | 16.0 (4.8-17.0) | 18.0 (5.4-20.0) | 17.5 (7.0-21.0 | |
| AEER/ACOP | 3.7 / 4.0 | 3.4 / 3.8 | 3.5 / 3.8 | 3.3 / 3.8 | ||
| Cooling Star Rating (Hot/Avg/Cold) | 4 / 3.5 / 4 | 3.5 / 3 / 3 | 3.5 / 3 / 3.5 | - | ||
| Heating Star Rating (Hot/Avg/Cold) | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | - | |
| Cooling Current Input Range | A | 2.3 - 20.0 | 3.2 - 25.0 | 3.7 - 28.0 | 4.1 - 32.0 | - |
| Heating Current Input Range | 2.7 - 20.0 | 3.7 - 25.0 | 4.1 - 28.0 | 4.6 - 32.0 | - | |
| Standby Power Consumption | W | 4.0 | 5.1 | 12.5 | 9.8 | - |
| Indoor Airflow Volume P-Hi/H/M/L | m3/h | 2100 / 1900 / 1700 / 1400 | 2800 / 2500 / 2200 / 1800 | 3200 / 2800 / 2400 / 2000 | 3500 / 3100 / 2700 / 2300 | - / 3800 / 3200 / 2950 |
| Indoor Sound Pressure Level H/M/L | dBA | 42 / 41 / 40 | 42 / 40 / 39 | 45 / 43 / 41 | 50 / 48 / 46 | 49 / 46 / 42 |
| Outdoor Sound Pressure Level (H) | 58 | 59 | 60 | 62 | ||
| Outdoor Fan Quantity | 1 | 2 | - | |||
| Operation Range Cool/Heat | C | -15 to 52 / -15 to 24 | -15 to 50 / -15 to 24 | |||
| Refrigerant Type/Charge | kg | R32 / 2.2 | R32 / 2.4 | R32 / 2.8 | R32 / 3.3 | R410A / - |
| Connection Pipe Max Height | m | 30 | ||||
| Connection Pipe Max Length | 75 | 65 | ||||
| Pipe Sizes (Liquid/Gas) | mm | 9.52 / 15.88 | 9.52 / 19.0 | |||
| Indoor Unit Dimensions (HxWxD) | 260 x 1340 x 655 | 360 x 1350 x 720 | 440 x 1400 x 858 | |||
| Outdoor Unit Dimensions (HxWxD) | 820 x 940 x 370 | 1260 x 900 x 340 | 1333 x 952 x 415 | |||
| Indoor Net/Gross Weight | kg | 43 / 49 | 57 / 67 | 60 / 70 | 74 / 86 | |
| Outdoor Net/Gross Weight | 67 / 79 | 90 / 99 | 97 / 106 | 112 / 126 | ||
| SKU | TDS-TSO100HVWDG |
| Brand | TECO |
| Shipping Weight | 110.0000kg |
| Shipping Cubic | 0.513398000m3 |
| Unit Of Measure | ea |
TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
