Fujitsu SET-ARTG45LHTDP 11.5kW 1 Phase Ducted Unit

ARTG45LHTDP/AOTG45LBTB Slimline Ducted Air Conditioner

$5,144.00 Incl GST
$4,676.36 Excl GST
In Stock


Fujitsu ARTG45LHTDP 11.5kW 1 Phase Ducted Unit - Includes Outdoor Unit AOTG45LBTB

The ultimate way to manage comfort throughout your entire home.

Features:

  • High static allows for an increased number of air ducts to be installed
  • Optional zone control allows for 8 zones to be connected, giving greater temperature control to meet individual needs
  • Use of single phase power allows for greater installation flexibility
  • Slim and compact design to fit into most ceiling spaces, making it ideal for apartment and hotel use

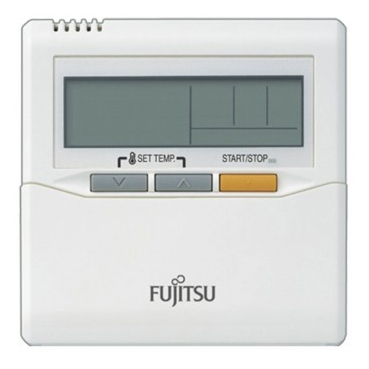

  • Operated from an easy to use central LCD control
  • Multiple features such as DC fan motors, DC rotary compressors and programmable systems deliver high energy efficiency

Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!

Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal, Iconic smart home automation product suppliers.

(SET-ARTG45LHTDP)

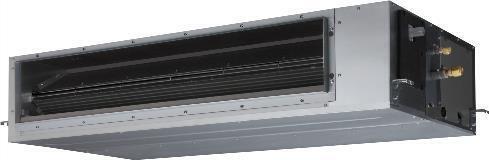

Indoor Unit ARTG45LHTDP

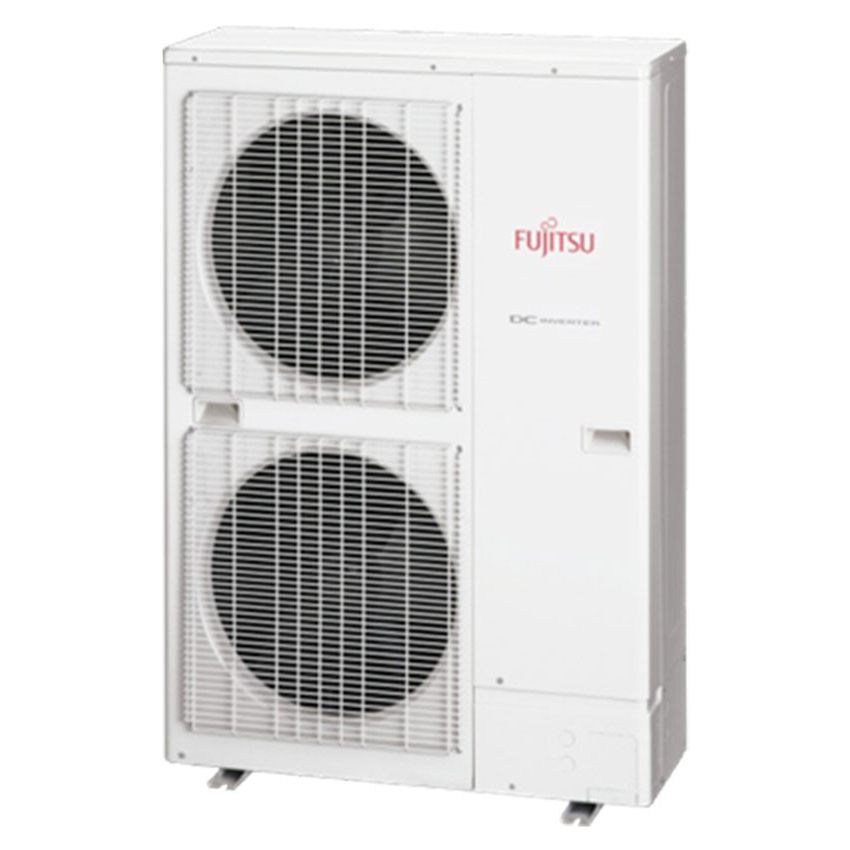

Outdoor Unit AOTG45LBTB
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 11.5
Heat (kW) 14.0
Capacity Range
Cool (kW) 4.0 ~ 13.3
Heat (kW) 4.2 ~ 15.5
Power Input (Rated)
Cool (kW) 3.33
Heat (kW) 3.68
Max Power
Cool (kW) 5.0
Heat (kW) 5.0
Running Current
Cool (A) 14.00
Heat (A) 15.40
EER / COP 3.45 / 3.80
Energy Star Ratings
Cool 3.0 / 2.5 / 3.0
Heat 2.5 / 2.0 / 1.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.635 / 4.367 / 4.539
HSPF (Hot/Average/Cold) 4.379 / 3.898 / 3.354
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.946 / 5.044 / 5.387
HSPF (Hot/Average/Cold) 4.376 / 4.072 / 3.636
Dimensions (HxWxD)
Indoor (mm) 300 x 1400 x 700
Outdoor (mm) 1290 x 900 x 330
Weight
Indoor (kg) 46
Outdoor (kg) 86
Refrigerant Type R410a
Refrigerant Amount (kg) 3.35
Pre-Charged to Pipe (m) 20
Max Pipe Length (m) 50
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -15 ~ 46
Heat (°C) -15 ~ 24
Max External Static Pressure (Pa) 200
Indoor Airflow Rate
Cool (l/s) 708
Heat (l/s) 708
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 40 / 29
Heat (dBA) 40 / 29
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 55
Heat (dBA) 55
Outdoor EPA Sound Power Level (H)
(dBA) 69
SKU SET-ARTG45LHTDP
Brand Fujitsu
Shipping Weight 132.0000kg
