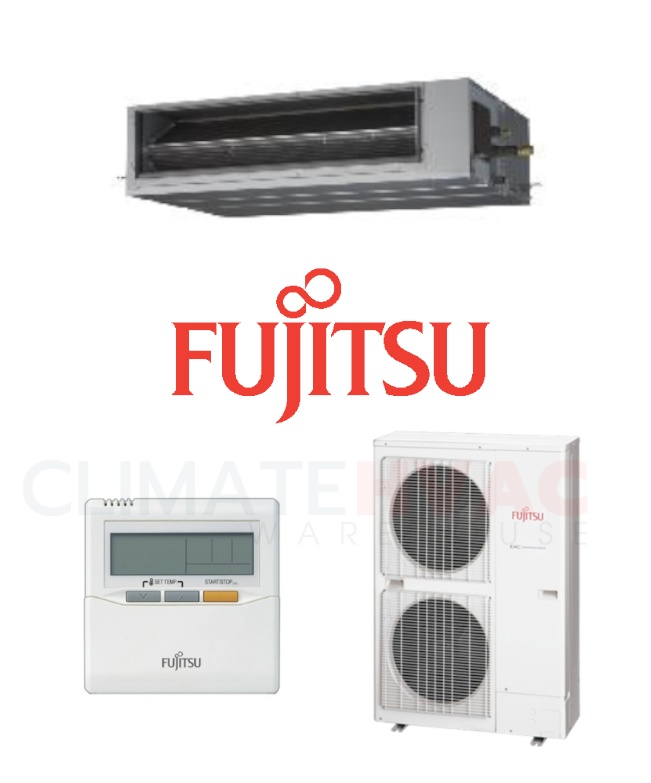

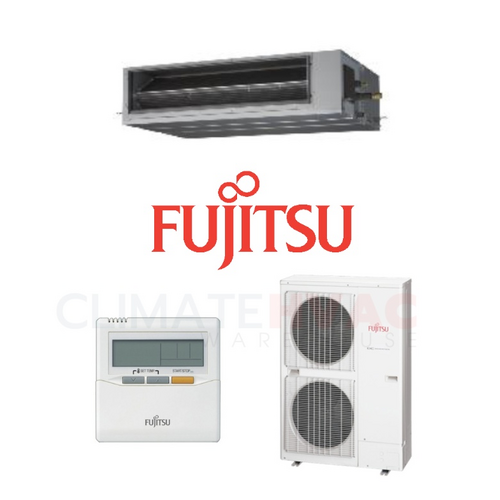

Fujitsu ARTG45 12.5kW 1 Phase Infinity Range Ducted Unit

ARTG45LDTA/AOTG45LBTA Ducted Air Conditioner

$5,056.00 Incl GST
$4,596.36 Excl GST
In Stock


Fujitsu ARTG45 12.5kW 1 Phase Ducted Unit - Includes Outdoor Unit AOTG45LBTA

The ultimate way to manage comfort throughout your entire home.

Features:

  • High static allows for an increased number of air ducts to be installed
  • Optional zone control allows for 8 zones to be connected, giving greater temperature control to meet individual needs
  • Use of single phase power allows for greater installation flexibility
  • Designed to allow for flexible installation in the best available space
  • Multiple features such as DC fan motors, DC rotary compressors and programmable systems deliver high energy efficiency

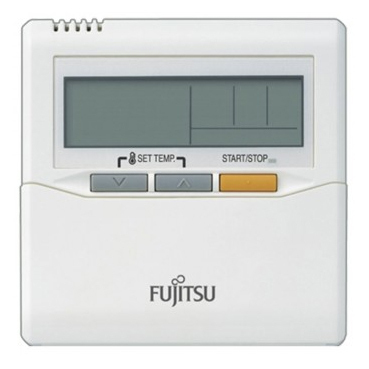

  • Easy to use controllers help you get the best out of your system

Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!

Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal, Iconic smart home automation product suppliers.

(SET-ARTG45LDTA)

Indoor Unit ARTG45LDTA

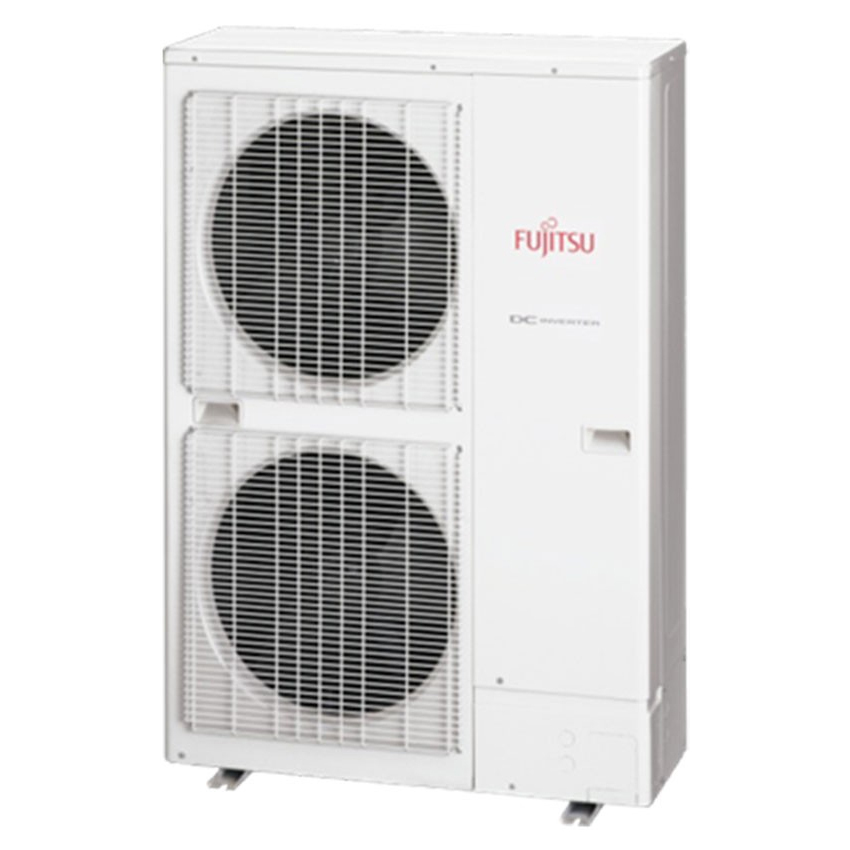

Outdoor Unit AOTG45LBTA
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 12.5
Heat (kW) 14.0
Capacity Range
Cool (kW) 5.7 ~ 14.0
Heat (kW) 6.0 ~ 16.0
Power Input (Rated)
Cool (kW) 3.91
Heat (kW) 3.50
Max Power
Cool (kW) 5.4
Heat (kW) 5.4
Running Current
Cool (A) 16.40
Heat (A) 14.70
EER / COP 3.20 / 4.00
Energy Star Ratings
Cool 2.5 / 2.0 / 2.5
Heat 3.0 / 2.5 / 2.0
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.160 / 3.934 / 4.073
HSPF (Hot/Average/Cold) 4.728 / 4.211 / 3.627
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.421 / 4.489 / 4.781
HSPF (Hot/Average/Cold) 4.728 / 4.411 / 3.920
Dimensions (HxWxD)
Indoor (mm) 360 x 1400 x 850
Outdoor (mm) 1290 x 900 x 330
Weight
Indoor (kg) 69
Outdoor (kg) 86
Refrigerant Type R410a
Refrigerant Amount (kg) 3.35
Pre-Charged to Pipe (m) 20
Max Pipe Length (m) 50
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -15 ~ 46
Heat (°C) -15 ~ 24
Max External Static Pressure (Pa) 250
Indoor Airflow Rate
Cool (l/s) 931
Heat (l/s) 931
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 40 / 32
Heat (dBA) 40 / 32
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 55
Heat (dBA) 55
Outdoor EPA Sound Power Level (H)
(dBA) 69
SKU SET-ARTG45LDTA
Brand Fujitsu
Shipping Weight 155.0000kg
