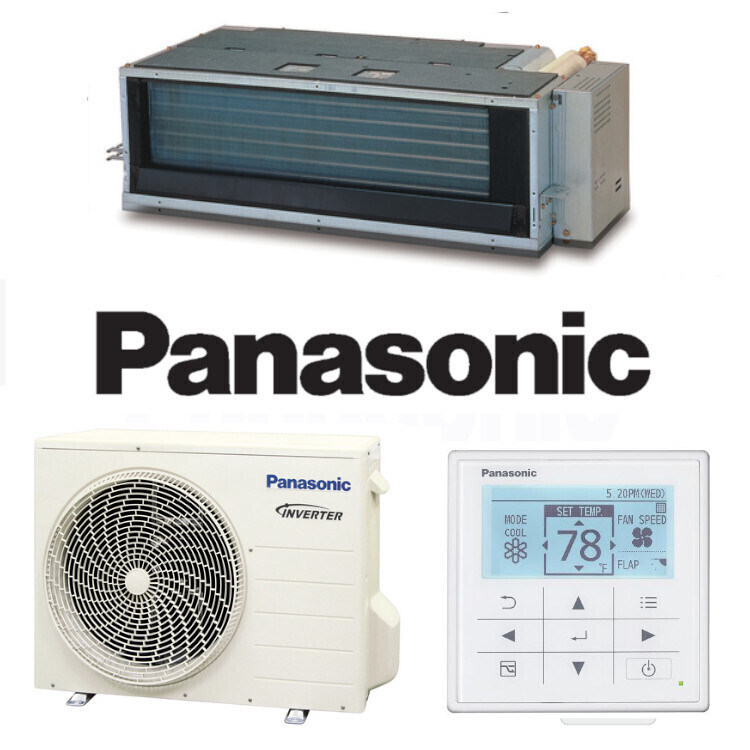

Panasonic CS/CU-E9QD3RW 2.5kW Ducted Bulkhead Air Conditioning System
Panasonic Ducted Bulkhead
$1,386.36 Excl GST
CSCU-E9QD3RW 2.5kW Inverter Bulkhead Ducted Air Conditioner is no longer available
Please see replacement part Panasonic CSCU-Z25UD3RAW 2.5 kW Slim Bulkhead System.
Many air conditioners operate at one constant speed and need to constantly turn on and off to maintain a set temperature. Panasonic Inverter air conditioners have the flexibility to vary the rotation speed of the compressor, allowing them to use less energy to maintain the set temperature while also being able to cool and heat the room quicker at start up.
Features:
- Panasonic Inverter technology
- Compact and flexible design
- Super quiet operation
- Outstanding operating temperature range
(CSCU-E9QD3RW)

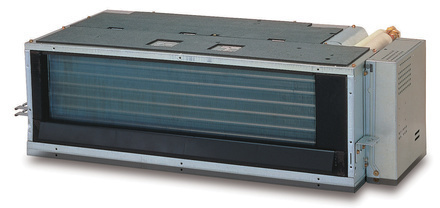

Indoor Unit | CS-E9QD3RW | |

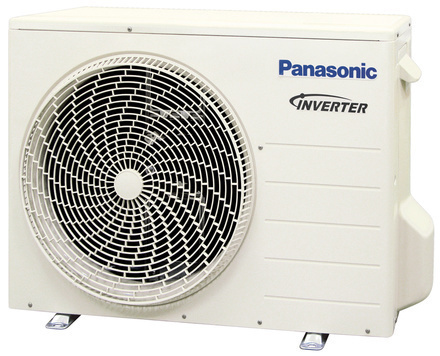

Outdoor Unit | CU-E9QD3R | |
Function | Cooling + Heating | |
Cooling Capacity Rated Conditions | kW | 2.5 |
Cooling Capacity Range - Min ~ Max | kW | 0.85 ~ 3.10 |
EER | w/w | 3.85 |
Heating Capacity Rated Conditions | kW | 3.2 |
Heating Capacity Range - Min ~ Max | kW | 0.85 ~ 4.40 |
COP | w/w | 3.64 |
Sound Pressure Indoor - Cool - Hi / Med / Lo | dB(A) | 32 / 27 / 24 |
Sound Pressure Indoor - Heat - Hi / Med / Lo | dB(A) | 34 / 28 / 25 |
Sound Pressure Outdoor - Cool / Heat | dB(A) | 46 / 48 |
Sound Power Outdoor - Cool / Heat | dB(A) | 61 / 63 |
Air Flow - Cool / Heat | L/s | 250 / 259 |
Indoor Dimensions - H x W x D | mm | 750 x 235 x 370 |
Outdoor Dimensions - H x W x D | mm | 824 x 619 x 299 |
Weight - Indoor | kg | 17 |
Weight - Outdoor | kg | 33 |
Refrigerant Pipe Diameter - Liquid Side / Gas Side | mm | Ø6.35 / Ø9.52 |
Piping Extension Length Min ~ Max | m | 3 ~15 |
SKU | CSCU-E9QD3RW | |
Brand | Panasonic | |
Shipping Weight | 50.0000kg |
