Fujitsu SET-ARTG36LHTAC 10.0 kW 1 Phase Ducted System

ARTG36LHTA/AOTG36LBTC Ducted Air Conditioner

$3,809.00 Incl GST
$3,462.73 Excl GST
In Stock

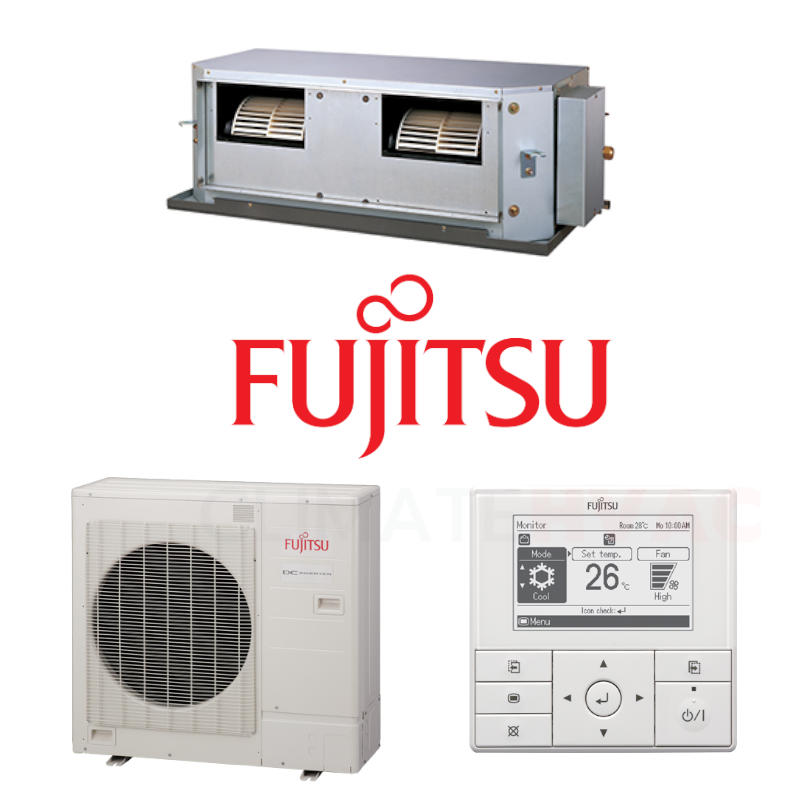

Fujitsu SET-ARTG36LHTAC 10.0 kW 1 Phase Ducted System - Includes AOTG36LBTC Outdoor Unit

A compact size and lightweight indoor unit. High static air conditioning allows for an increased number of air ducts to be installed and the single phase power allows greater installation flexibility.

Features:

  • All DC
  • Auto Changeover
  • Auto Restart
  • Blue Fin Heat Exchanger
  • Connectable Distributing Duct
  • Connectable Fresh Air Duct

(SET-ARTG36LHTAC)

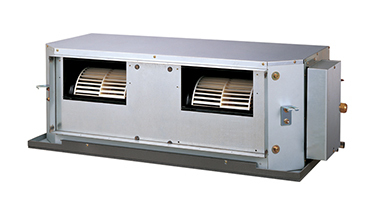

Indoor Unit ARTG36LHTA

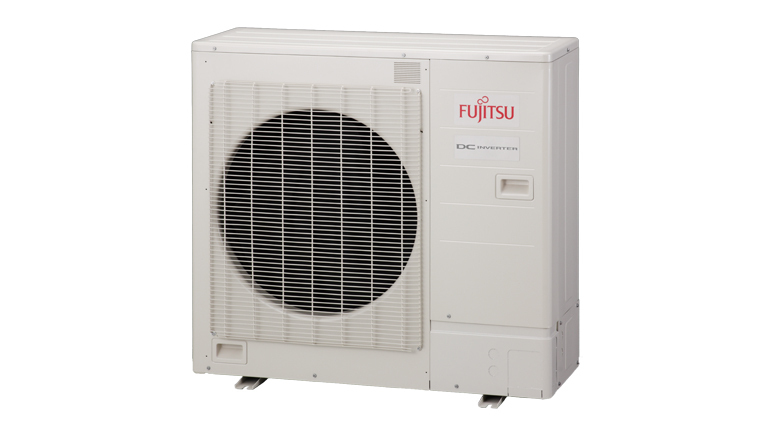

Outdoor Unit AOTG36LBTC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 10.0
Heat (kW) 12.5
Capacity Range
Cool (kW) 5.0 ~ 11.4
Heat (kW) 5.1 ~ 14.0
Power Input (Rated)
Cool (kW) 3.08
Heat (kW) 3.42
Max Power
Cool (kW) 5.0
Heat (kW) 5.0
Running Current
Cool (A) 13.00
Heat (A) 14.40
EER / COP 3.25 / 3.65
Energy Star Ratings
Cool 2.5 / 2.0 / 2.0
Heat 3.0 / 2.5 / 1.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.142 / 3.872 / 3.980
HSPF (Hot/Average/Cold) 4.617 / 4.044 / 3.478
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.406 / 4.444 / 4.717
HSPF (Hot/Average/Cold) 4.625 / 4.278 / 3.791
Dimensions (HxWxD)
Indoor (mm) 400 x 1050 x 500
Outdoor (mm) 914 x 970 x 370
Weight
Indoor (kg) 39
Outdoor (kg) 75
Refrigerant Type R410a
Refrigerant Amount (kg) 2.90
Pre-Charged to Pipe (m) 20
Max Pipe Length (m) 50
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -15 ~ 46
Heat (°C) -15 ~ 24
Max External Static Pressure (Pa) 210
Indoor Airflow Rate
Cool (l/s) 695
Heat (l/s) 695
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 41 / 36
Heat (dBA) 41 / 36
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 52
Heat (dBA) 54
Outdoor EPA Sound Power Level (H)
(dBA) 68
SKU SET-ARTG36LHTAC
Brand Fujitsu
Shipping Weight 114.0000kg
Shipping Cubic 0.538034600m3
