Fujitsu SET-ARTG45LHTAC 11.5 kW 1 Phase Ducted System

ARTG45LHTA/AOTG45LBTC Ducted Air Conditioner

$4,291.00 Incl GST
$3,900.91 Excl GST
In Stock

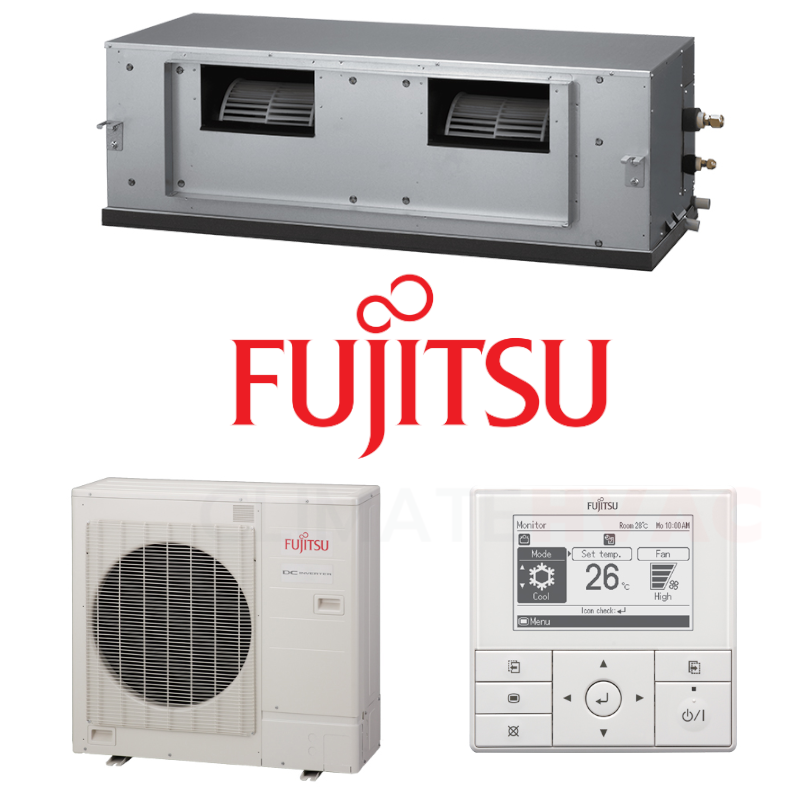

Fujitsu SET-ARTG45LHTAC 11.5 kW 1 Phase Ducted System - Includes AOTG45LBTC Outdoor Unit

A compact size and lightweight indoor unit. High static air conditioning allows for an increased number of air ducts to be installed and the single phase power allows greater installation flexibility.

Features:

  • All DC
  • Auto Changeover
  • Auto Restart
  • Blue Fin Heat Exchanger
  • Connectable Distributing Duct
  • Connectable Fresh Air Duct

(SET-ARTG45LHTAC)

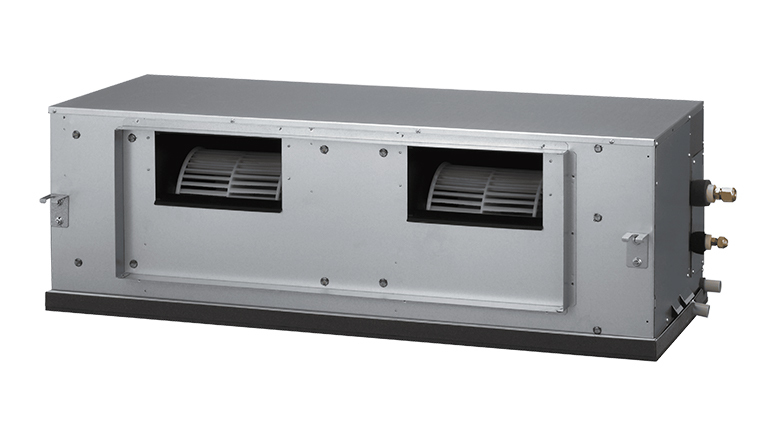

Indoor Unit ARTG45LHTA

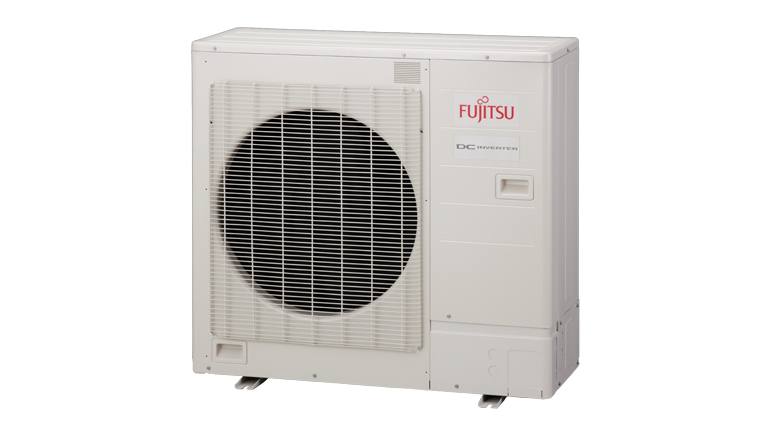

Outdoor Unit AOTG45LBTC
Power Supply 1 Phase, 220 ~ 240v, 50Hz
Rated Capacity
Cool (kW) 11.5
Heat (kW) 14.0
Capacity Range
Cool (kW) 5.7 ~ 13.5
Heat (kW) 6.0 ~ 15.5
Power Input (Rated)
Cool (kW) 3.70
Heat (kW) 3.84
Max Power
Cool (kW) 5.6
Heat (kW) 5.6
Running Current
Cool (A) 15.50
Heat (A) 16.10
EER / COP 3.11 / 3.65
Energy Star Ratings
Cool 2.5 / 2.0 / 2.5
Heat 3.0 / 2.0 / 1.5
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.250 / 3.979 / 4.140
HSPF (Hot/Average/Cold) 4.581 / 3.875 / 3.249
Residential TCSPF/HSPF
TCSPF (Hot/Average/Cold) 4.550 / 4.647 / 4.970
HSPF (Hot/Average/Cold) 4.588 / 4.174 / 3.508
Dimensions (HxWxD)
Indoor (mm) 425 x 1250 x 490
Outdoor (mm) 914 x 970 x 370
Weight
Indoor (kg) 54
Outdoor (kg) 75
Refrigerant Type R410a
Refrigerant Amount (kg) 2.90
Pre-Charged to Pipe (m) 20
Max Pipe Length (m) 50
Max Level Difference
(m) 30
Pipe Sizes
Liquid (mm) 9.52
Gas (mm) 15.88
Ambient Temperature
Cool (°C) -15 ~ 46
Heat (°C) -15 ~ 24
Max External Static Pressure (Pa) 260
Indoor Airflow Rate
Cool (l/s) 903
Heat (l/s) 903
Indoor Sound Pressure Level (H/SL)
Cool (dBA) 43 / 35
Heat (dBA) 43 / 35
Outdoor Sound Pressure Level (H/SL)
Cool (dBA) 58
Heat (dBA) 58
Outdoor EPA Sound Power Level (H)
(dBA) 72
SKU SET-ARTG45LHTAC
Brand Fujitsu
Shipping Weight 129.0000kg
Shipping Cubic 0.588347100m3
