Mitsubishi Electric MFZKW60VGKKIT 6.1kW Floor Console Air Con Low Cost Install Brisbane Sydney

Mitsubishi Electric MFZKW60VGKKIT 6.1kW Wi-Fi Floor Console R32 Air Conditioning System

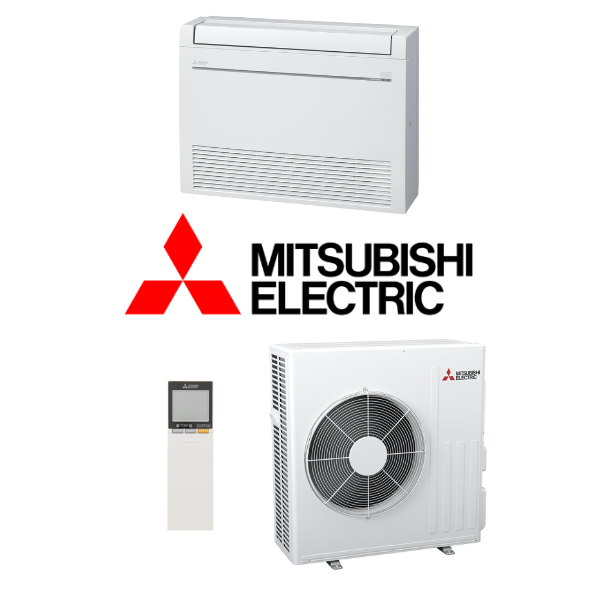

Mitsubishi Electric MFZKW60VGKKIT 6.1kW Floor Console Air Conditioning System (Built-in Wi-Fi) - Includes Outdoor Unit and Controller

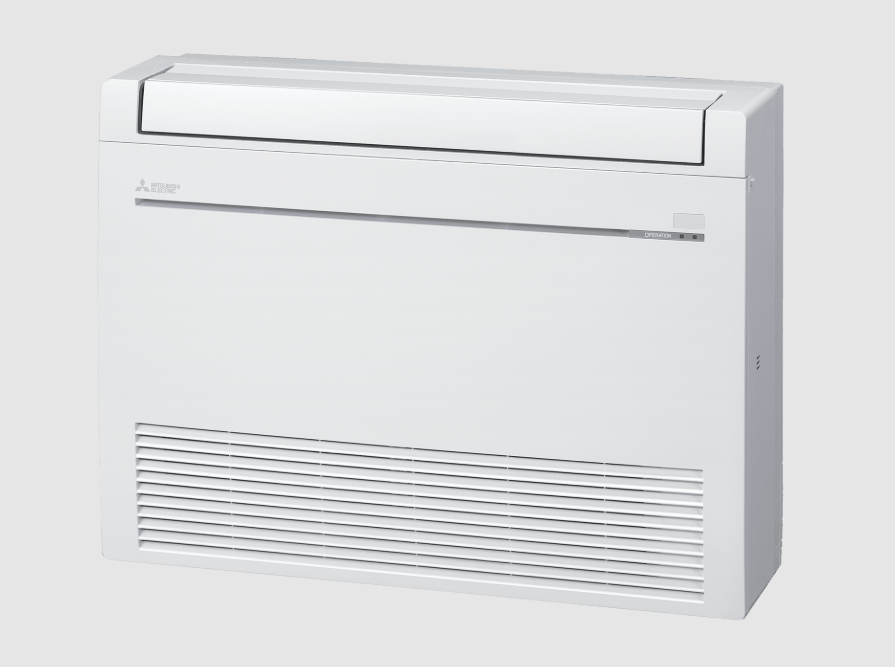

Discover innovation and slim sophistication with the MFZ-KW Series floor air conditioner. This unobtrusive and quiet air conditioner delivers cool and warm air with style and efficiency and is perfectly suited to modern homes.

Key Features:

Slim & Sophisticated Design
Multi Flow Vane
Removable Base for Recess Installation
Built In Wi-Fi Control
Rapid Heating Technology
Quiet Operation
Built-In Weekly Timer
Nano Platinum Filter

(MFZKW60VGKKIT)

System Name	MFZKW25VGKKIT	MFZKW35VGKKIT	MFZKW42VGKKIT	MFZKW50VGKKIT	MFZKW60VGKKIT
Indoor Unit	MFZ-KW25VGK-A1	MFZ-KW35VGK-A1	MFZ-KW42VGK-A1	MFZ-KW50VGK-A1	MFZ-KW60VGK-A1

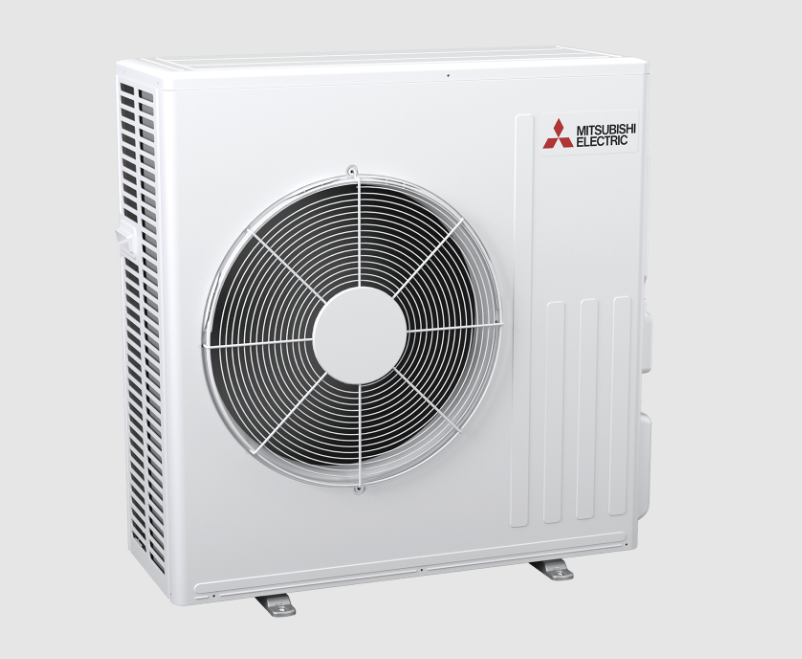

Outdoor Unit	MUFZ-KW25VG2-A1	MUFZ-KW35VG2-A1	MUFZ-KW42VG2-A1	MUFZ-KW50VG2-A1	MUFZ-KW60VG2-A1
Cooling Capacity (kW)	2.5	3.5	4.2	5.0	6.1
Heating Capacity (kW)	3.4	4.3	5.4	5.8	6.5
EER/COP	4.38 / 4.35	4.02 / 3.77	3.78 / 3.77	3.78 / 3.79	3.52 / 3.45
TCSPF Residential (H/Avg/C) - Cool	5.56 / 5.08 / 5.18	5.33 / 4.96 / 5.12	4.72 / 4.43 / 4.54	4.58 / 4.32 / 4.41	4.46 / 4.22 / 4.36
HSPF Residential (H/Avg/C) - Heat	4.62 / 4.36 / 4.07	4.59 / 4.14 / 3.74	4.67 / 4.17 / 3.70	4.67 / 4.20 / 3.79	4.64 / 4.05 / 3.56
ZERL Residential Star Rating (H/Avg/C) - Cool	4.0 / 3.5 / 3.5	3.5 / 3.0 / 3.5	3.0 / 2.5 / 3.0	3.0 / 2.5 / 2.5	2.5 / 2.5 / 2.5
ZERL Residential Star Rating (H/Avg/C) - Heat	3.0 / 2.5 / 2.5	3.0 / 2.5 / 2.0
Rated Running Current Cool/Heat (A)	2.9 / 3.8	4.1 / 5.1	5.1 / 6.5	5.9 / 6.8	7.5 / 8.3
Sound Pressure Level (Q/L/M/H/SH) dBA - Cool	20 - 26 - 32 - 38 - 44		20 - 28 - 36 - 43 - 51	27 - 31 - 35 - 39 - 44	27 - 35 - 39 - 46 - 53
Sound Pressure Level (Q/L/M/H/SH) dBA - Heat	18 - 25 - 31 - 38 - 44		18 - 27 - 36 - 44 - 51	29 - 35 - 40 - 45 - 50	29 - 35 - 41 - 47 - 51
Sound Pressure Level Out (PWL) dBA - Cool	48(61)		48(62)	53(66)
Sound Pressure Level Out (PWL) dBA - Heat	46(59)	47(60)	47(61)	56(69)
Air Volume (Q-L-M-Hi-SHi) Cool (L/s)	65 - 80 - 107 - 135 - 172		65 - 88 - 125 - 163 - 228	102 - 112 - 133 - 155 - 177	102 - 133 - 160 - 205 - 250
Air Volume (Q-L-M-Hi-SHi) Heat (L/s)	58 - 75 - 102 - 135 - 173		58 - 83 - 125 - 170 - 235	100 - 128 - 157 - 193 - 233	100 - 128 - 162 - 208 - 243
Max. Running Current (A)	9.9		10.1	15.3	15.4
Indoor Dimensions (HxWxD) (mm)	600 x 750 x 215
Outdoor Dimensions (HxWxD) (mm)	550 x 800 x 285			880 x 840 x 330
Indoor Weight (kg)	15.0
Outdoor Weight (kg)	35			54
Pipe Sizes (mm) (Liquid/Gas)	6.35 / 9.52			6.35 / 12.7
Max Piping Length/Height (m)	20 / 12			30 / 15
Outdoor Operating Range Cool/Heat (C)	-10 to 46 / -15 to 24
R32 Pre-Charged Refrigerant (kg)	1.00			1.30
