Mitsubishi Electric PEAM160HAAVKIT 16.0kW 1 Phase Ducted LARGE Power Inverter Air Conditioning System

PEA-M160HAA / PUZ-ZM160VKA-A.TH Mitsubishi Ducted

$6,490.00 Incl GST
$5,900.00 Excl GST
In Stock


Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

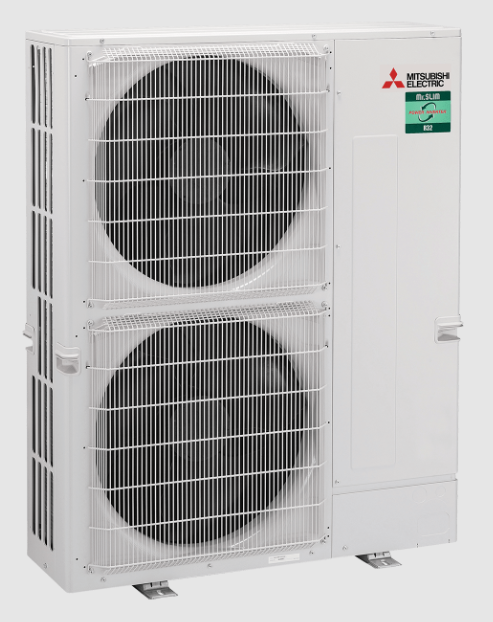

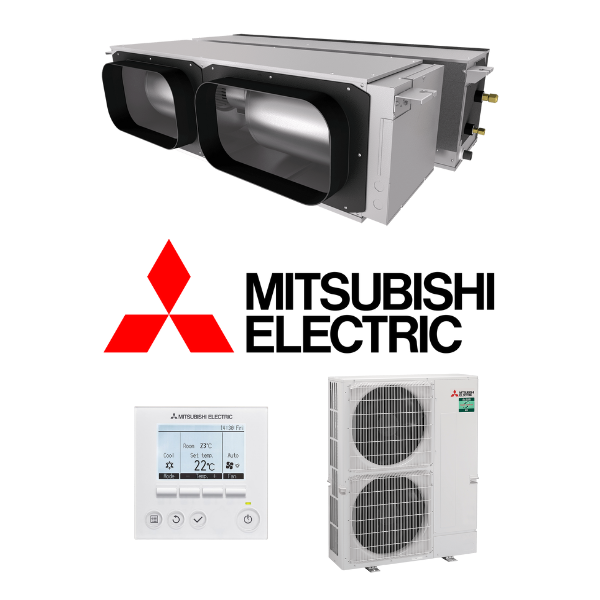

Mitsubishi Electric PEA-M160HAA 16.0kW Single Phase Ducted Unit - Includes Outdoor Unit PUZ-ZM160VKA-A

Keep your home at the ideal temperature all year long with the PEA-M160HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.

The new PEA-M Series is designed to suit Australian homes with guaranteed cooling performance at higher ambient temperatures and heating performances at low ambient conditions. It complements the aesthetically designed house with concealed installation, a wide range of capacities and airflows to best suit the comfort conditions.

A new 16 kW model has been added to the range. The 16 kW indoor model can be connected to either a single-phase or three-phase Mr Slim outdoor unit

Key Features:

  • High External Static Pressure

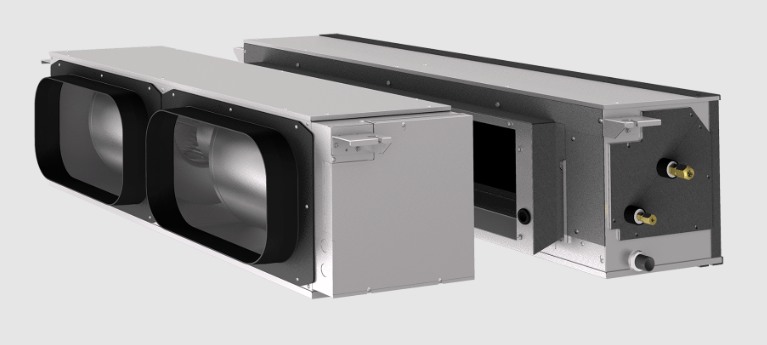

  • 2 Piece Contruction: This ducted fan coil has a two-piece construction, which allows for the separation of the indoor unit heat exchanger and the fan deck assembly. This is beneficial for installation into the roof space, for greater room capacities and increased variation in airflow; ensuring operation that suits most room layouts.
  • 4 Fan Speed Settings
  • Optional Zone Conroller: Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.
  • Easy Maintenance
  • Flexible Ducting Design
  • R32 Regrigerant

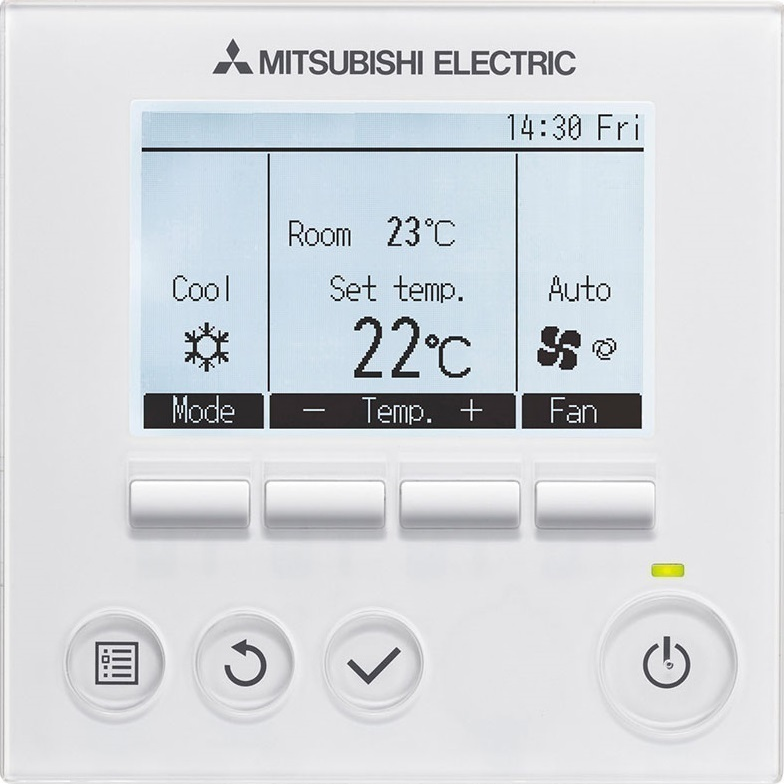

  • PAR-41MAAM Wall Mounted Controller
  • Optional Wi-Fi Control - 1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
  • Improved Ventilation & Energy Efficiency with Optional Lossnay Heat Recovery Ventilation
  • Large capacity single-phase power supply
  • Long pipe lengths

(PEAM160HAAVKIT)

System Name  PEAM160HAAVKIT  PEAM180LAAVKIT  PEAM160HAAYKIT  PEAM180LAAYKIT  PEAM200YKIT  PEAM250YKIT
Indoor Unit  PEA-M160HAA  PEA-M180LAA.TH  PEA-M160HAA  PEA-M180LAA.TH  PEA-M200LAA.TH  PEA-M250LAA.TH
Outdoor Unit  PUZ-ZM160VKA-A.TH  PUZ-ZM180VKA-A.TH  PUZ-ZM160YKA-A.TH  PUZ-ZM180YKA-A.TH  PUZ-ZM200YKA-A.TH  PUZ-ZM250YKA-A.TH
Cooling Capacity (kW)  16.0  18.0  16.0  18.0  20.0  24.5
Heating Capacity (kW)  18.0  20.0  18.0  20.0  22.4  28.0
Indoor Dimensions (HxWxD) (mm)  380 x 1405 x 900  470 x 1370 x 1120  380 x 1405 x 900  470 x 1370 x 1120
Outdoor Dimensions (HxWxD) (mm)  1338 x 1405 x 900  1338 x 1050 x 330(+40)  1338 x 1405 x 900  1338 x 1050 x 330(+40)
Indoor Weight (kg)  66  88  66  88
Outdoor Weight (kg)  115  116  136  139
Pipe Sizes (mm) (Liquid/Gas)  9.52 / 19.1  9.52 / 22.2  12.7 / 22.2
SKU PEAM160HAAVKIT
Brand Mitsubishi Electric
Shipping Weight 181.0000kg
Unit Of Measure ea
