Braemar SDHV10D1S 10.0kW Single Phase Ducted System

SDHV10D1S/SCHV10D1S Ducted System Air Conditioner

$2,790.00 Incl GST
$2,536.36 Excl GST
In Stock

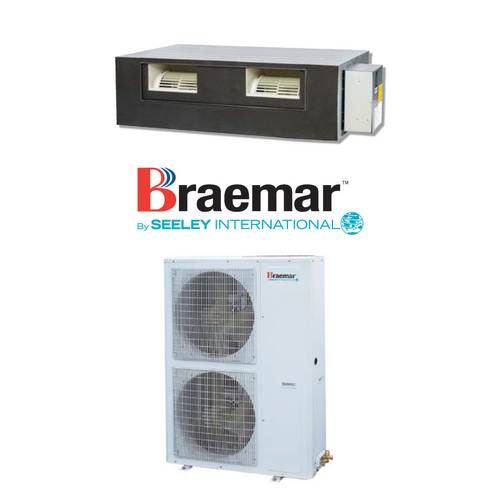

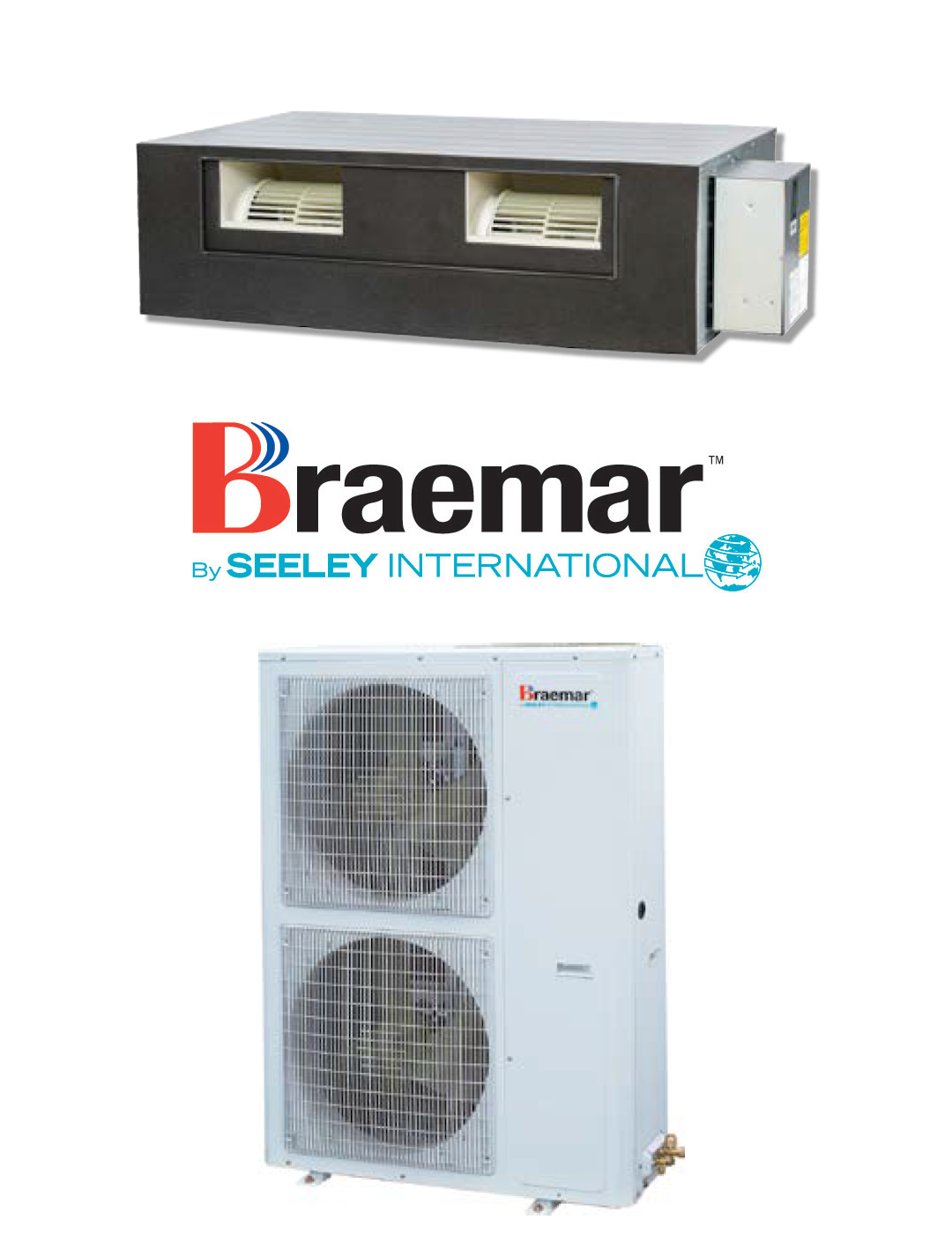

Braemar SDHV10D1S 10.0kW Single Phase Ducted System - Includes Outdoor Unit SCHV10D1S

All Braemar ducted inverter systems feature DC inverter technology. An inverter is a power conversion circuit that electronically regulates the voltage, current and frequency of an air conditioner. This circuit controls the compressor, outdoor and indoor fans, maximising the air conditioner's efficiency.

Key Features:

  • Power Saving
  • Efficient and Quiet
  • Low Profile Design
  • Flexible Outdoor Placement
  • Easy and Flexible Installation

(SDHV10D1S)

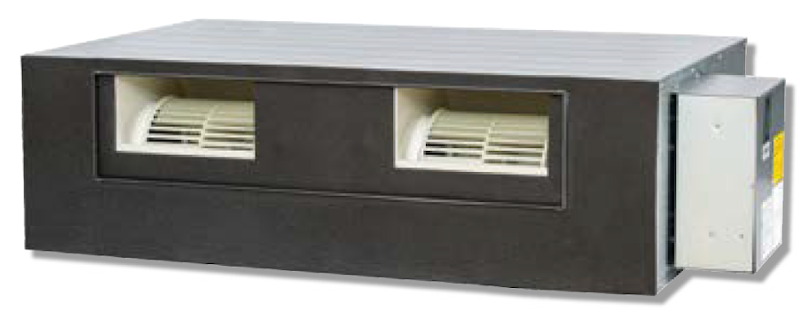

Indoor SDHV10D1S

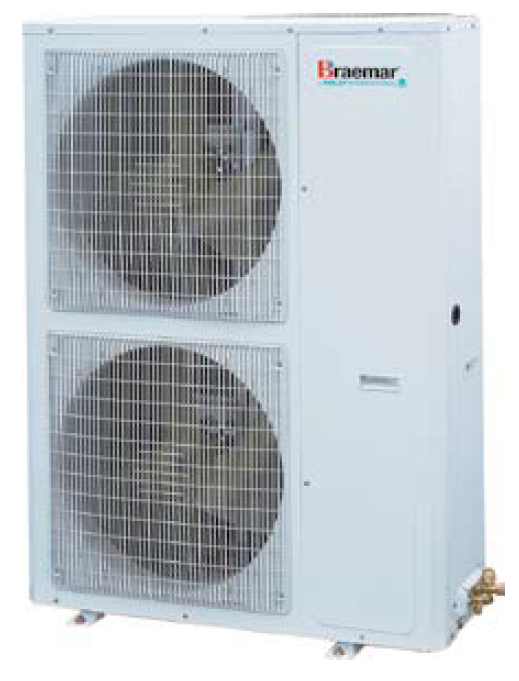

Outdoor SCHV10D1S
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 10.0 (3.2 - 11.0)
Power Input (Range) kW 3.10 (0.70 - 4.50)
Max Current Input (Indoor / Outdoor)   1 / 19
Efficiency - Rated  W/W 3.23
Ambient Temperature Range °C -15 - 48
Heating Capacity - Rated (Range) kW 12.0 (2.9 - 13.0)
Power Input (Range) kW 3.30 (0.70 - 4.6)
Max Current Input (Indoor / Outdoor)   1 / 19
Efficiency - Rated  W/W 3.64
Ambient Temperature Range °C -10 - 24
Indoor Unit Dimensions (WxDxH) mm 1340 x 350 x 750
Net Weight kg 56.0
Min/Max Airflow L/s 330 - 750
Range (9 Settings)  Pa 0 - 200
SKU SDHV10D1S
Brand Braemar
Shipping Weight 147.0000kg
Shipping Cubic 0.887538000m3
