Braemar SDHV12D1S 12.0kW Single Phase Ducted System

SDHV12D1S/SCHV12D1S Ducted System Air Conditioner

$3,289.00 Incl GST
$2,990.00 Excl GST
In Stock

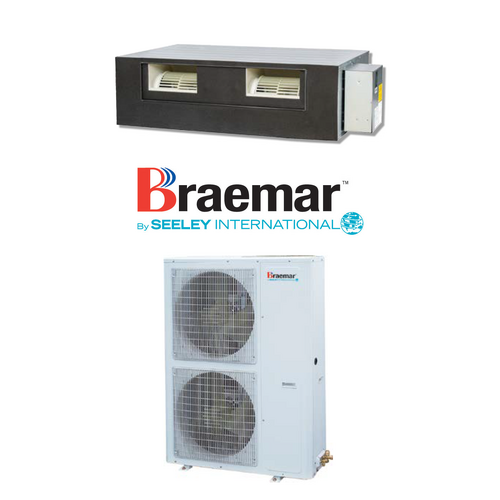

Braemar SDHV12D1S 12.0kW Single Phase Ducted System - Includes Outdoor Unit SCHV12D1S

All Braemar ducted inverter systems feature DC inverter technology. An inverter is a power conversion circuit that electronically regulates the voltage, current and frequency of an air conditioner. This circuit controls the compressor, outdoor and indoor fans, maximising the air conditioner's efficiency.

Key Features:

  • Power Saving
  • Efficient and Quiet
  • Low Profile Design
  • Flexible Outdoor Placement
  • Easy and Flexible Installation

(SDHV12D1S)

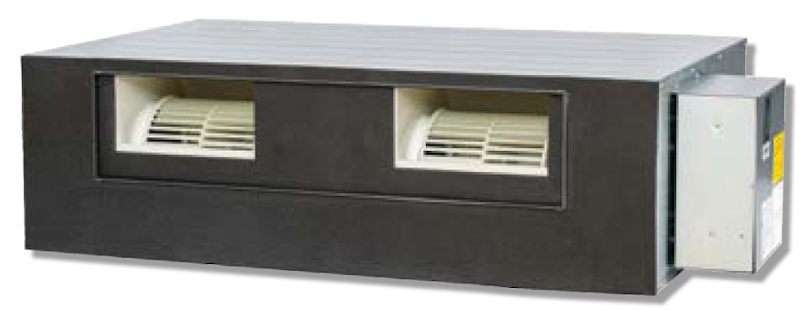

Indoor SDHV12D1S

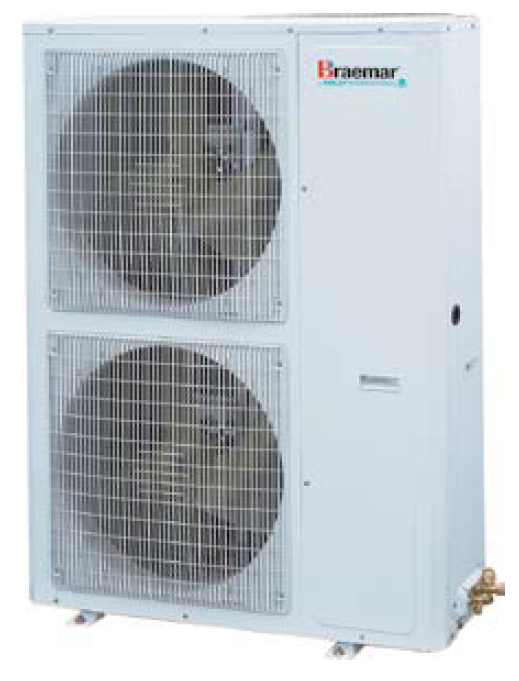

Outdoor SCHV12D1S
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 12.0 (4.0 - 13.5)
Power Input (Range) kW 3.70 (0.65 - 4.70)
Max Current Input (Indoor / Outdoor)   1 / 21
Efficiency - Rated  W/W 3.24
Ambient Temperature Range °C -15 - 48
Heating Capacity - Rated (Range) kW 13.8 (4.0 - 15.0)
Power Input (Range) kW 4.00 (1.30 - 5.5)
Max Current Input (Indoor / Outdoor)   1 / 21
Efficiency - Rated  W/W 3.45
Ambient Temperature Range °C -10 - 24
Indoor Unit Dimensions (WxDxH) mm 1340 x 350 x 750
Net Weight kg 59.0
Min/Max Airflow L/s 420 - 900
Range (9 Settings)  Pa 0 - 200
SKU SDHV12D1S
Brand Braemar
Shipping Weight 160.0000kg
Shipping Cubic 0.887538000m3
