Braemar SDHV20D3S 20.0kW Three Phase Ducted System

SDHV20D1S/SCHV20D3S Reverse Cycle Ducted System

$5,780.00 Incl GST
$5,254.55 Excl GST
In Stock

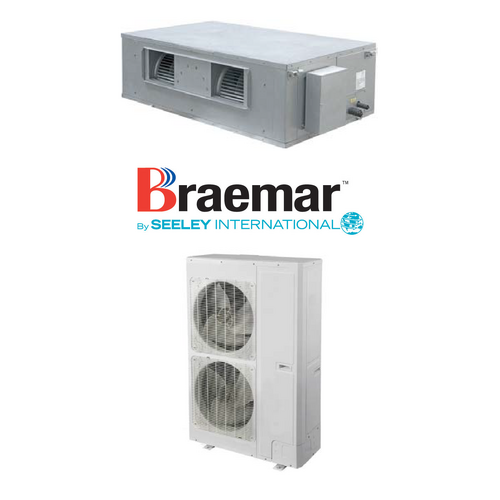

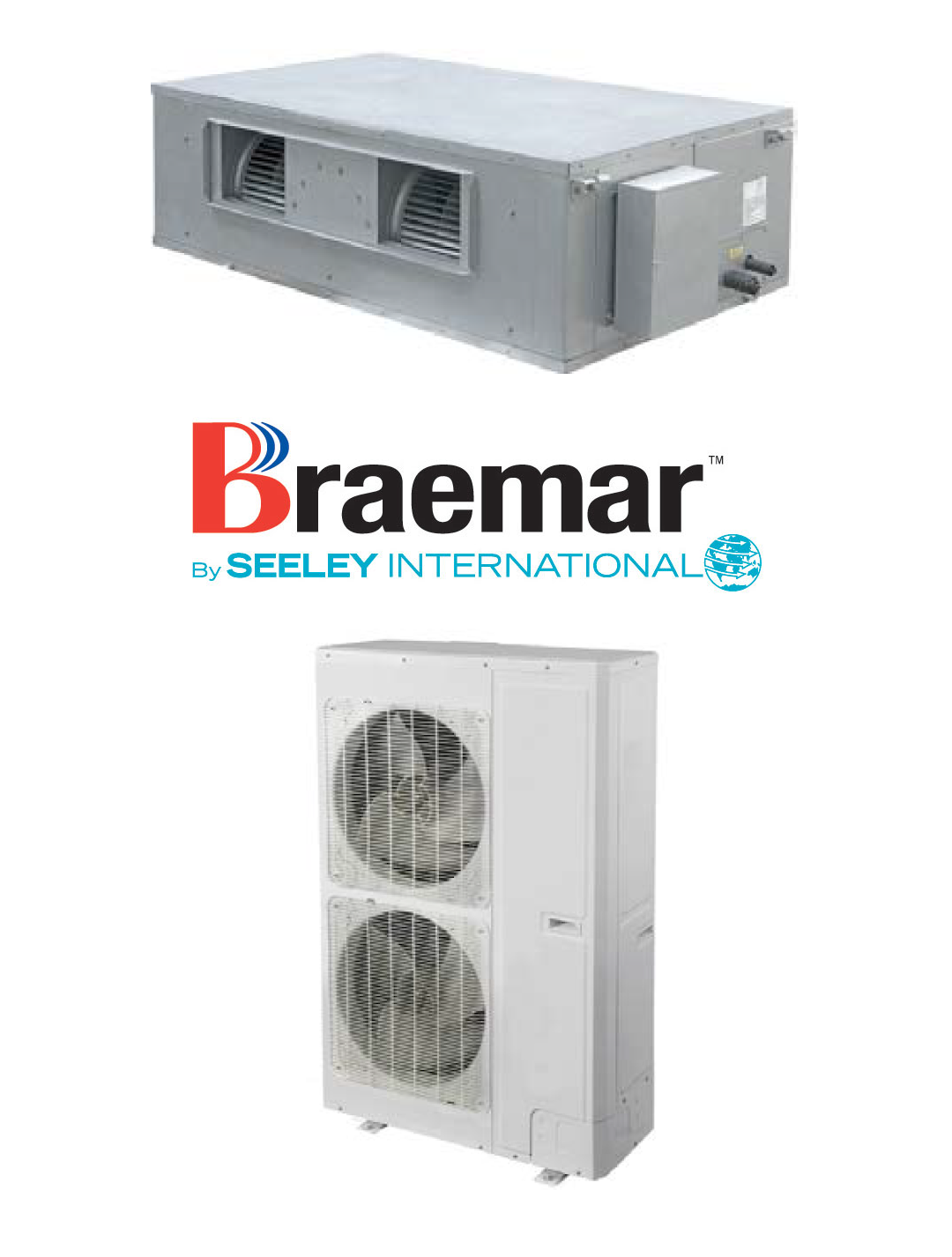

Braemar SDHV20D3S 20.0kW Three Phase Ducted System - Includes Outdoor Unit SCHV20D1S

All Braemar ducted inverter systems feature DC inverter technology. An inverter is a power conversion circuit that electronically regulates the voltage, current and frequency of an air conditioner. This circuit controls the compressor, outdoor and indoor fans, maximising the air conditioner's efficiency.

Key Features:

  • Power Saving
  • Efficient and Quiet
  • Low Profile Design
  • Flexible Outdoor Placement
  • Easy and Flexible Installation

(SDHV20D3S)

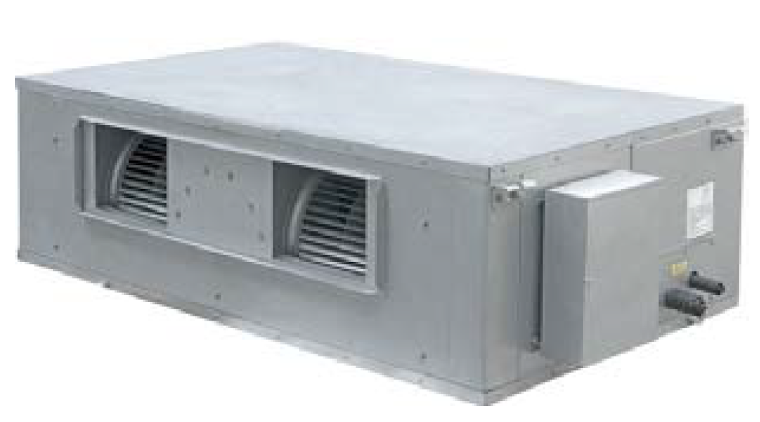

Indoor SDHV20D1S

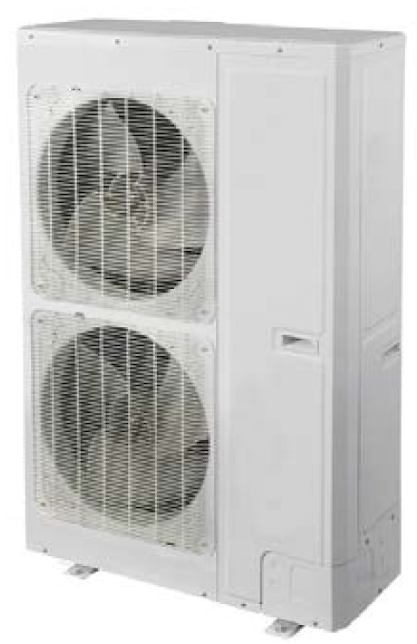

Outdoor SCHV20D3S
Refrigerant Type   R32
Power Supply (Volts - Phase - Hz)   220-240 / 3 / 50
Cooling Capacity - Rated (Range) kW 20.0 (10.0 - 25.0)
Power Input (Range) kW 6.06
Max Current Input (Indoor / Outdoor)   11.2 / 12.3
Efficiency - Rated  W/W 3.24
Ambient Temperature Range °C -7 - 48
Heating Capacity - Rated (Range) kW 16.0 (5.2 - 17.0)
Power Input (Range) kW 6
Max Current Input (Indoor / Outdoor)   11.2 / 12.3
Efficiency - Rated  W/W 3.24
Ambient Temperature Range °C -15 - 24
Indoor Unit Dimensions (WxDxH) mm 1690 x 440 x 870
Net Weight kg 110.0
Min/Max Airflow L/s 830 - 1400
Range (9 Settings)  Pa 0 - 250
SKU SDHV20D3S
Brand Braemar
Shipping Weight 265.0000kg
