Braemar SDHV24D3S 24.0kW Three Phase Ducted System

SDHV24D1S/SCHV24D3S Ducted System Air Conditioner

$6,777.00 Incl GST
$6,160.91 Excl GST
In Stock

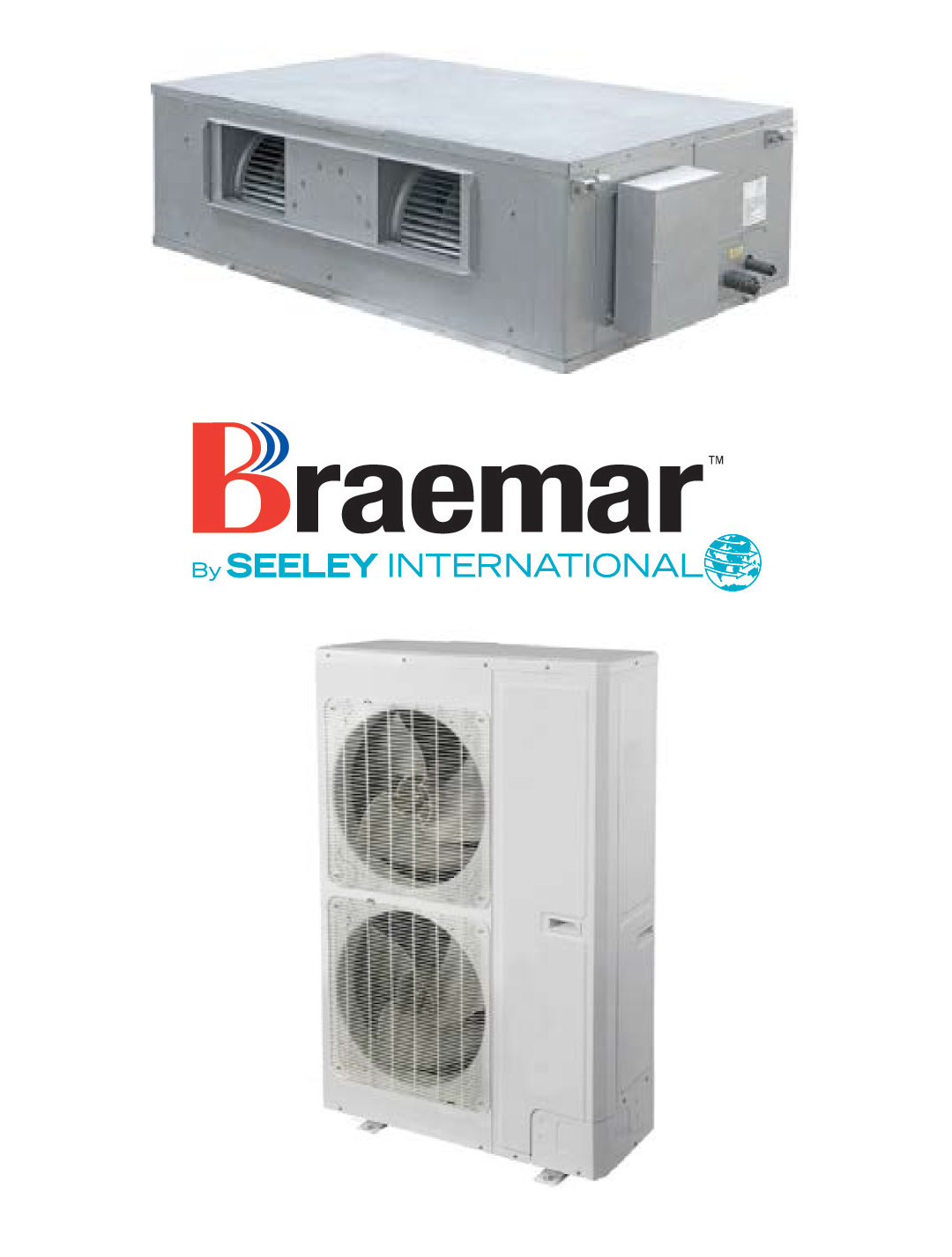

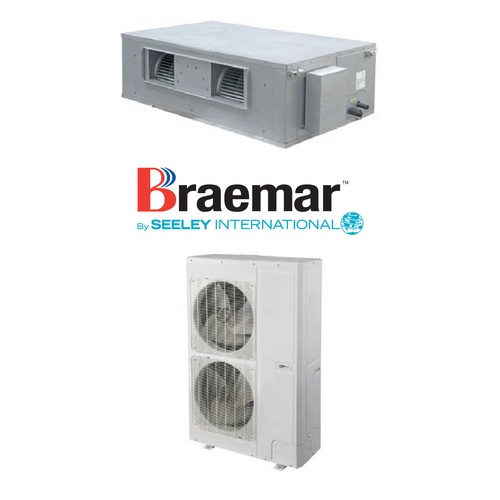

Braemar SDHV24D3S 24.0kW Three Phase Ducted System - Includes Outdoor Unit SCHV24D1S

All Braemar ducted inverter systems feature DC inverter technology. An inverter is a power conversion circuit that electronically regulates the voltage, current and frequency of an air conditioner. This circuit controls the compressor, outdoor and indoor fans, maximising the air conditioner's efficiency.

Key Features:

  • Power Saving
  • Efficient and Quiet
  • Low Profile Design
  • Flexible Outdoor Placement
  • Easy and Flexible Installation

(SDHV24D3S)

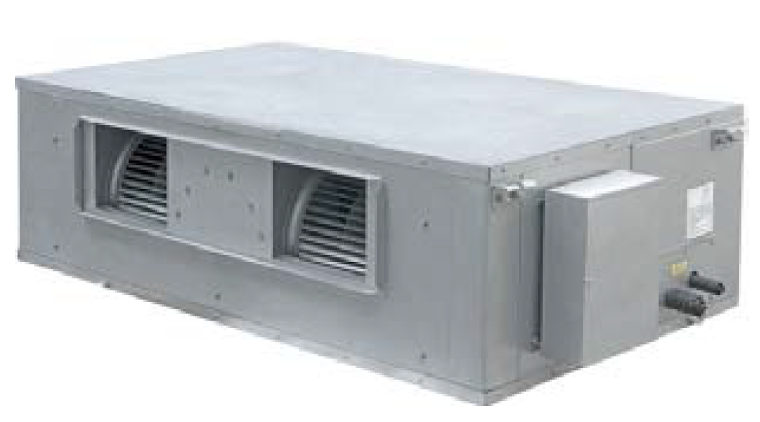

Indoor SDHV24D1S

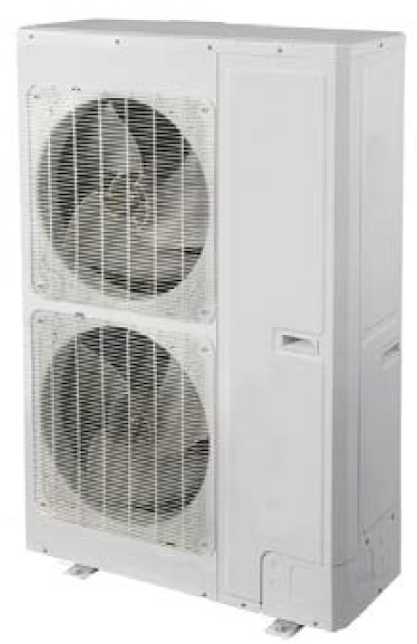

Outdoor SCHV24D3S
Refrigerant Type   R32
Power Supply (Volts - Phase - Hz)   220-240 / 3 / 50
Cooling Capacity - Rated (Range) kW 24.0 (11.0 - 27.5)
Power Input (Range) kW 7.12
Max Current Input (Indoor / Outdoor)   13.5 / 14.4
Efficiency - Rated  W/W 3.24
Ambient Temperature Range °C -7 - 48
Heating Capacity - Rated (Range) kW 26.0 (11.0 - 33.0)
Power Input (Range) kW 7.02
Max Current Input (Indoor / Outdoor)   13.5 / 14.4
Efficiency - Rated  W/W 3.24
Ambient Temperature Range °C -15 - 24
Indoor Unit Dimensions (WxDxH) mm 1690 x 440 x 870
Net Weight kg 113.0
Min/Max Airflow L/s 830 - 1400
Range (9 Settings)  Pa 0 - 250
SKU SDHV24D3S
Brand Braemar
Shipping Weight 288.0000kg
Shipping Cubic 1.345258000m3
