Mitsubishi Electric Compact Cassette SLZM50VAKIT 5.0kW 1 Phase Inverter Air Conditioning System

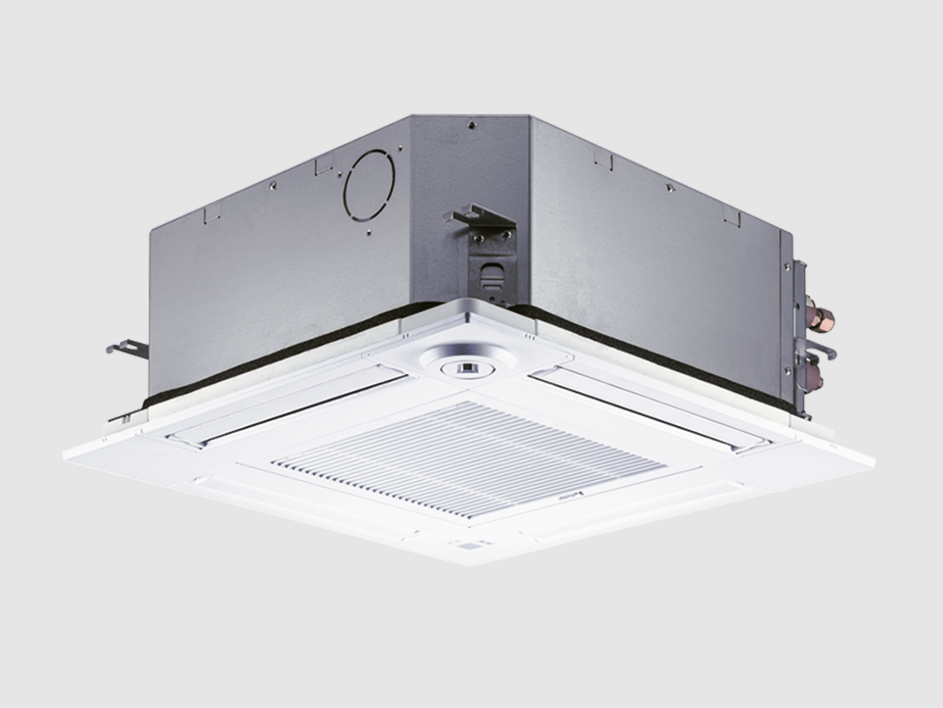

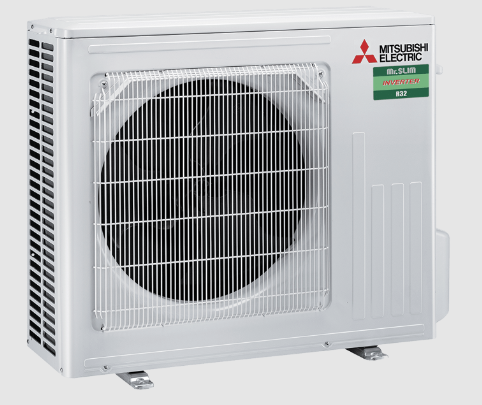

SLZ-M50FA-A.TH/SUZ-M50VAD-A.TH Mitsubishi Cassette
$2,145.45 Excl GST

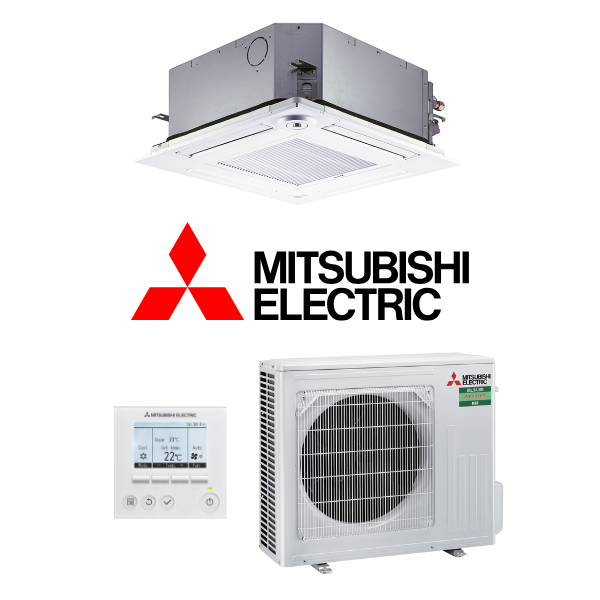

Mitsubishi Electric Compact Cassette SLZM50VAKIT 5.0kW Single Phase Air Conditioner - Includes Outdoor Unit and PAR-41MAAM Wired Wall Mounted Controller
Engineered for versatility and efficiency, the SLZ-M ceiling cassette air conditioner sets the standard in climate control. With its compact design and advanced features, this unit is ideal for those seeking a blend of style, functionality, and energy efficiency in their air conditioning needs.
Key Features:
- Compact Design
- Built-in Drain Pump
- Horizontal Airflow
- Set Airflow Height According to Ceiling Height
- Weekly Timer
- Outside Air Intake
(SLZM50VAKIT)
| System | SLZM25VAKIT | SLZM35VAKIT | SLZM50VAKIT | SLZM60VAKIT | |
|---|---|---|---|---|---|
| Indoor Unit | SLZ-M25FA-A.TH | SLZ-M35FA-A.TH | SLZ-M50FA-A.TH | SLZ-M60FA-A.TH | |
| Outdoor Unit | SUZ-M25VAD-A.TH | SUZ-M35VAD-A.TH | SUZ-M50VAD-A.TH | SUZ-M60VAD-A.TH | |
| Cooling Capacity Rated/Min-Max | kW | 2.5 (1.5-3.5) | 3.5 (1.5-4.0) | 5.0 (2.3-5.5) | 5.6 (2.3-6.7) |
| Heating Capacity Rated/Min-Max | 3.0 (1.3-4.1) | 4.0 (1.3-5.0) | 5.0 (1.7-5.5) | 6.0 (2.5-7.6) | |
| Power Supply | 1 Phase, 230V, 50/60Hz | ||||
| EER/COP | 4.03 / 3.85 | 3.76 / 3.80 | 3.35 / 3.16 | 3.41 / 3.20 | |
| Total Input Rated Cool/Heat | kW | 0.62 / 0.78 | 0.93 / 1.05 | 1.49 / 1.58 | 1.64 / 1.87 |
| Star Rating Cool/Heat | 3.5 / 2.5 | 3.0 / 2.5 | 2.0 / 1.5 | 2.0 / 1.5 | |
| Rated Running Current Cool/Heat | A | 3.30 / 3.90 | 4.30 / 4.80 | 6.60 / 7.10 | 7.20 / 8.20 |
| Sound Pressure Level In (Lo/Me/Hi) Cooling | dBA | 25 - 28 - 31 | 25 - 33 - 39 | 27 - 34 - 39 | 32 - 40 - 43 |
| Sound Pressure Level Out (PWL) Cooling | 45(59) | 48(62) | 48(64) | 49(65) | |
| Sound Pressure Level In (Lo/Me/Hi) Heating | 25 - 28 - 31 | 25 - 33 - 39 | 27 - 34 - 39 | 32 - 40 - 43 | |
| Sound Pressure Level Out (PWL) Heating | 46(59) | 48(63) | 49(66) | 51(68) | |
| Air Volume (In) Lo/Me/Hi Cooling | L/s | 108 - 125 - 142 | 108 - 150 - 192 | 117 - 150 - 192 | 125 - 192 - 217 |
| Air Volume (In) Lo/Me/Hi Heating | 108 - 125 - 142 | 108 - 150 - 192 | 117 - 150 - 192 | 125 - 192 - 217 | |
| Max Running Current | A | 7.0 | 8.8 | 13.8 | 15.2 |
| Indoor Unit Dimensions HxWxD | mm | 245 x 570 x 570 | |||
| Panel Dimensions HxWxD | 10 x 625 x 625 | ||||
| Outdoor Unit Dimensions HxWxD | 550 x 800 x 285 | 714 x 800 x 285 | 880 x 840 x 330 | ||
| Indoor Unit Weight | kg | 15 | |||
| Panel Weight | 3 | ||||
| Outdoor Unit Weight | 30 | 35 | 41 | 54 | |
| Pipe Sizes (Liquid/Gas) | mm | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | |
| Max. Piping Length/Height | m | 20 / 12 | 30 / 30 | ||
| Outdoor Operating Range Cool/Heat | C | -10 to 52 / -10 to 24 | -15 to 52 / -10 to 24 | ||
| Pre-Charge R32 Refrigerant | kg | 0.65(7m) | 0.90(7m) | 1.20(7m) | 1.25(7m) |
| Additional Refrigerant | g/m | 20 | |||
| SKU | SLZM50VAKIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 59.0000kg |
| Shipping Cubic | 0.246298000m3 |
| Unit Of Measure | ea |
