Braemar SDHV14D1S 14.0kW Single Phase Ducted System

SDHV14D1S/SCHV14D1S Reverse Cycle Ducted System

$3,687.00 Incl GST
$3,351.82 Excl GST
In Stock

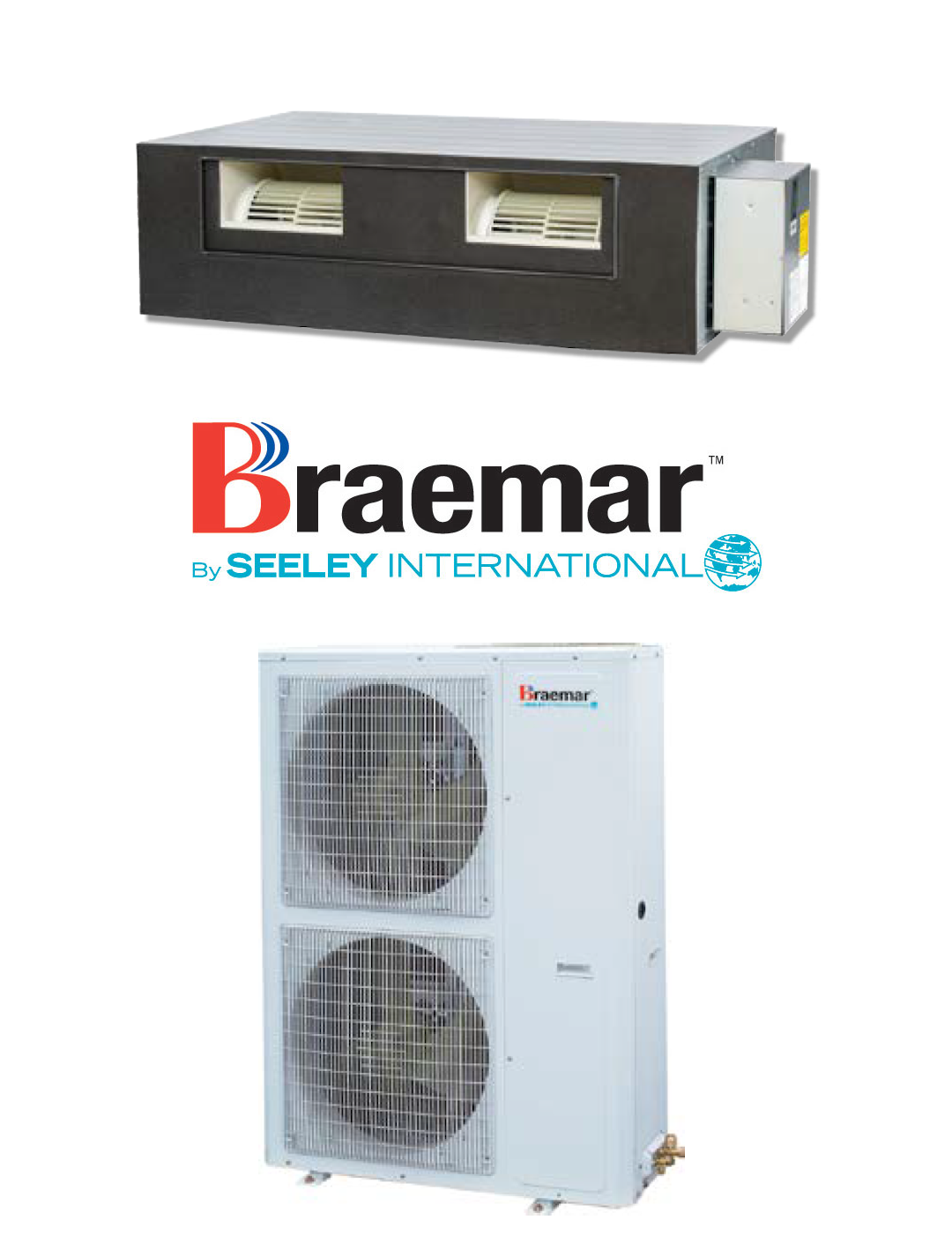

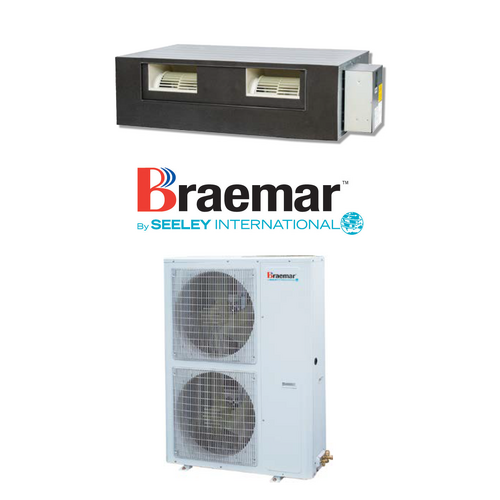

Braemar SDHV14D1S 14.0kW Single Phase Ducted System - Includes Outdoor Unit SCHV14D1S

All Braemar ducted inverter systems feature DC inverter technology. An inverter is a power conversion circuit that electronically regulates the voltage, current and frequency of an air conditioner. This circuit controls the compressor, outdoor and indoor fans, maximising the air conditioner's efficiency.

Key Features:

  • Power Saving
  • Efficient and Quiet
  • Low Profile Design
  • Flexible Outdoor Placement
  • Easy and Flexible Installation

(SDHV14D1S)

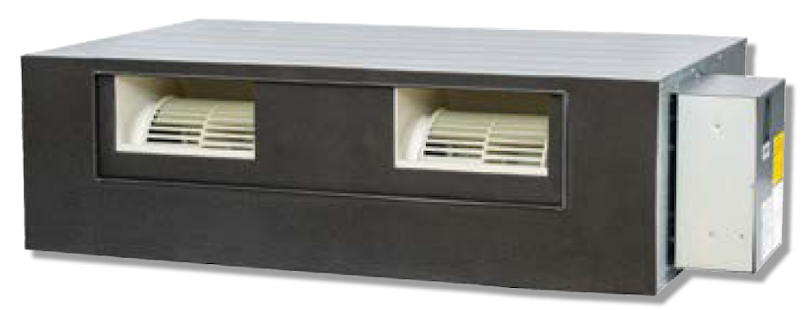

Indoor SDHV14D1S

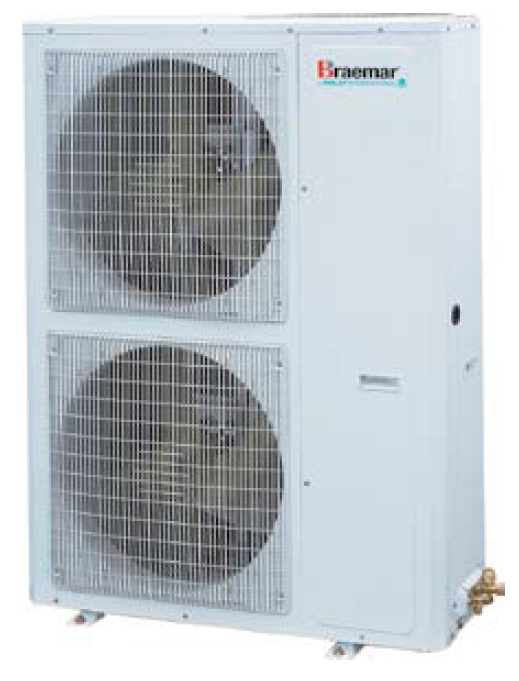

Outdoor SCHV14D1S
Refrigerant Type   R410A
Power Supply (Volts - Phase - Hz)   220-240 / 1 / 50
Cooling Capacity - Rated (Range) kW 13.7 (6.0 - 14.5)
Power Input (Range) kW 4.25 (1.40 - 5.60)
Max Current Input (Indoor / Outdoor)   2 / 28
Efficiency - Rated  W/W 3.22
Ambient Temperature Range °C -15 - 48
Heating Capacity - Rated (Range) kW 16.0 (5.2 - 17.0)
Power Input (Range) kW 4.80 (1.30 - 5.5)
Max Current Input (Indoor / Outdoor)   2 / 28
Efficiency - Rated  W/W 3.33
Ambient Temperature Range °C -10 - 24
Indoor Unit Dimensions (WxDxH) mm 1340 x 350 x 750
Net Weight kg 59.0
Min/Max Airflow L/s 470 - 950
Range (9 Settings)  Pa 0 - 200
SKU SDHV14D1S
Brand Braemar
Shipping Weight 176.0000kg
